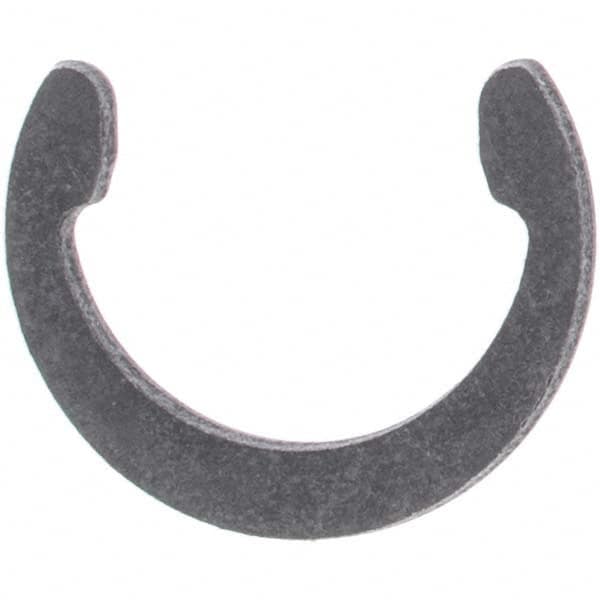

1″ Shaft Diam, 0.9″ Groove Diam, Spring Steel External C Style Retaining Ring 1.13″ Free OD, 0.887″ Free ID, 0.046″ Groove Width x 0.05″ Groove Depth, 0.042″ Ring Thickness, Grade 1060-1090
Item #: 99622607
Brand: Rotor Clip
Model #: C-100ST PA
Product Specifications
| Ring Type | C Style |
| System of Measurement | Inch |
| Groove Diameter | 0.9 in |
| Groove Diameter Tolerance | -0.0030 to 0.0040 in |
| Shaft Diameter (Inch) | 1 |
| Free Diameter | 0.887 in |
| Free Outside Diameter | 1.13 in |
| Groove Diameter (Decimal Inch) | 0.9000 |
| Material | Spring Steel |
| Free Outside Diameter (Decimal Inch) | 1.1300 |
| Free Diameter (Decimal Inch) | 0.8870 |
| Military Specification | Does Not Meet Military Specifications |
| Finish | Phosphate |
| Inside Diameter | 0.887 in |
| Finish/Coating | Phosphate |
| Groove Width Tolerance | 0.000 to 0.003 in |
| Groove Depth | 0.05 in |
| Ring Thickness Tolerance | -0.002 to 0.002 in |
| Material Grade | 1060-1090 |
| Groove Width (Decimal Inch) | 0.046 in |
| Groove Depth (Decimal Inch) | 0.0500 |
| Ring Thickness (Decimal Inch) | 0.042 in |
| Minimum Shaft Diameter (Decimal Inch) | 1.0000 |
| Maximum Shaft Diameter (Decimal Inch) | 1.0000 |
| Groove Diameter Tolerance (Decimal Inch) | -0.0030 to 0.0040 |
| Groove Width Tolerance (Decimal Inch) | 0.000 to 0.003 |
| Free Diameter Tolerance (Decimal Inch) | -0.007 to 0.007 |
| Ring Thickness Tolerance (Decimal Inch) | -0.002 to 0.002 |
| Ring Thickness Tol. (Plated Ring) (Decimal Inch) | -0.002 to 0.004 |
| Hardness | Rockwell C47-C52 |
