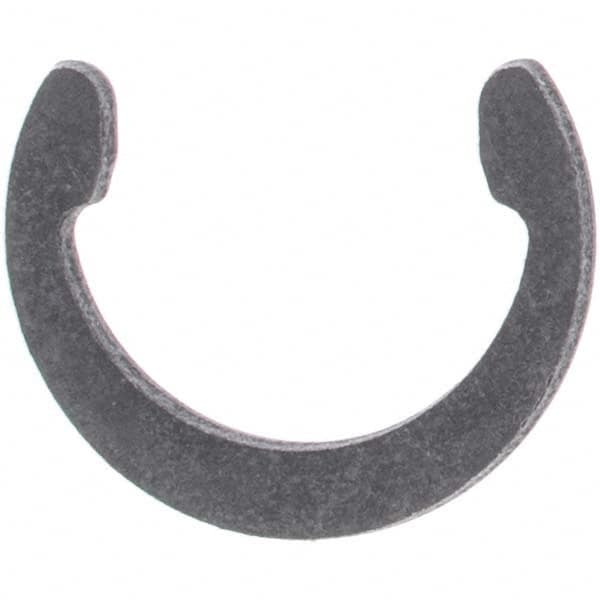

1/8″ Shaft Diam, 0.106″ Groove Diam, Spring Steel External C Style Retaining Ring 0.165″ Free OD, 0.102″ Free ID, 0.02″ Groove Width x 0.0095″ Groove Depth, 0.015″ Ring Thickness, Grade 1060-1090

1/8″ Shaft Diam, 0.106″ Groove Diam, Spring Steel External C Style Retaining Ring 0.165″ Free OD, 0.102″ Free ID, 0.02″ Groove Width x 0.0095″ Groove Depth, 0.015″ Ring Thickness, Grade 1060-1090


Item #: 99622375
Brand: Rotor Clip
Model #: C-12ST PA

Product Specifications

Ring Type C Style
System of Measurement Inch
Groove Diameter 0.106 in
Groove Diameter Tolerance -0.0015 to 0.0015 in
Shaft Diameter (Inch) 1/8
Free Diameter 0.102 in
Free Outside Diameter 0.165 in
Groove Diameter (Decimal Inch) 0.1060
Material Spring Steel
Free Outside Diameter (Decimal Inch) 0.1650
Free Diameter (Decimal Inch) 0.1020
Military Specification Does Not Meet Military Specifications
Finish Phosphate
Inside Diameter 0.102 in
Finish/Coating Phosphate
Groove Width Tolerance 0.000 to 0.002 in
Groove Depth 0.0095 in
Ring Thickness Tolerance -0.002 to 0.002 in
Material Grade 1060-1090
Groove Width (Decimal Inch) 0.02 in
Groove Depth (Decimal Inch) 0.0095
Ring Thickness (Decimal Inch) 0.015 in
Minimum Shaft Diameter (Decimal Inch) 0.1250
Maximum Shaft Diameter (Decimal Inch) 0.1250
Groove Diameter Tolerance (Decimal Inch) -0.0015 to 0.0015
Groove Width Tolerance (Decimal Inch) 0.000 to 0.002
Free Diameter Tolerance (Decimal Inch) -0.004 to 0.002
Ring Thickness Tolerance (Decimal Inch) -0.002 to 0.002
Ring Thickness Tol. (Plated Ring) (Decimal Inch) -0.002 to 0.004
Hardness Rockwell 15N 86-88.5
