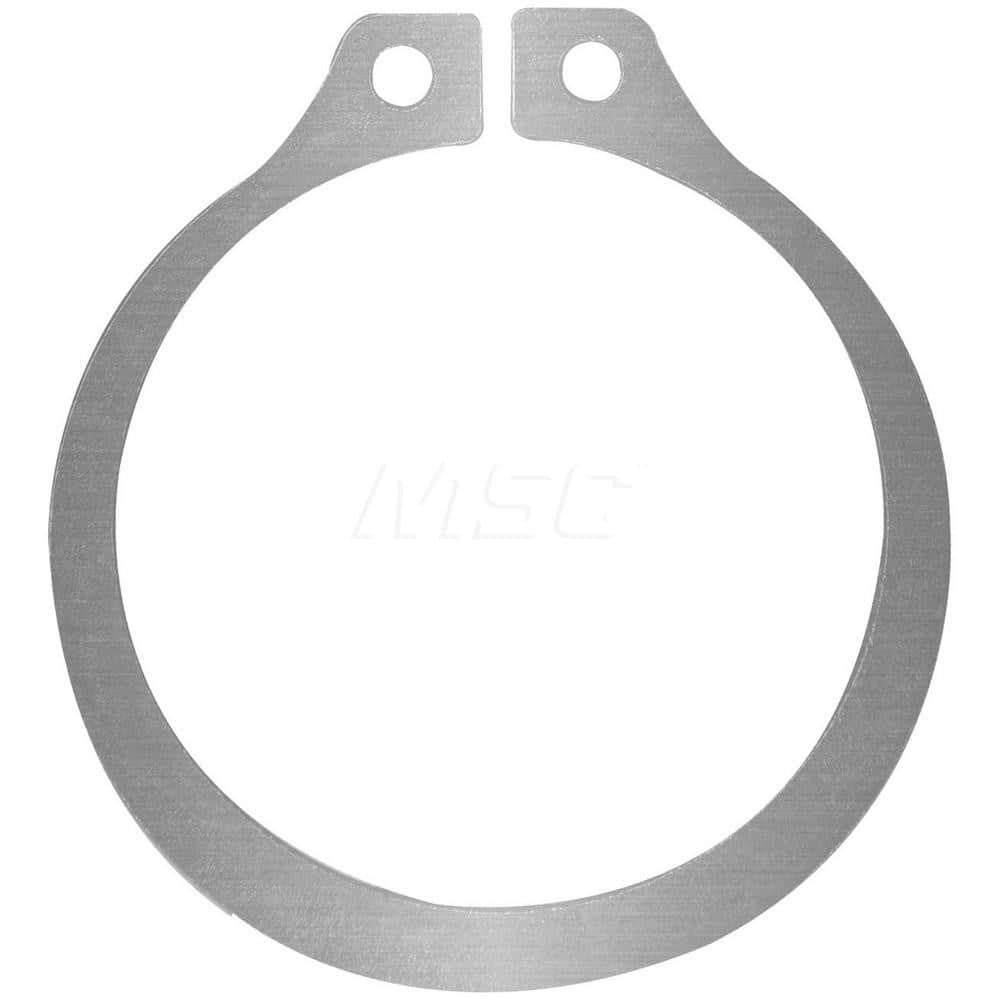

9/16″ Shaft Diam, 0.53″ Groove Diam, Stainless Steel External SH Style Retaining Ring 0.521″ Free ID, 0.039″ Groove Width x 0.016″ Groove Depth, 0.035″ Ring Thickness, Grade 15-7 Grade 632, Military Spec
Item #: 99622235
Brand: Rotor Clip
Model #: SH-56SS MPS
Product Specifications
| Ring Type | SH Style |
| System of Measurement | Inch |
| Groove Diameter | 0.53 in |
| Groove Diameter Tolerance | -0.0040 to 0.0020 in |
| Shaft Diameter (Inch) | 9/16 |
| Free Diameter | 0.521 in |
| Groove Diameter (Decimal Inch) | 0.5300 |
| Material | Stainless Steel |
| Free Diameter (Decimal Inch) | 0.5210 |
| Military Specification | MS16624-4056 |
| Finish/Coating | Passivated |
| Groove Width Tolerance | 0.000 to 0.003 in |
| Groove Depth | 0.016 in |
| Ring Thickness Tolerance | 0.0020 to 0.0020 in |
| Material Grade | 15-7 Grade 632 |
| Groove Width (Decimal Inch) | 0.039 in |
| Groove Depth (Decimal Inch) | 0.0160 |
| Ring Thickness (Decimal Inch) | 0.035 in |
| Groove Diameter Tolerance (Decimal Inch) | -0.0040 to 0.0020 |
| Groove Width Tolerance (Decimal Inch) | 0.000 to 0.003 |
| Free Diameter Tolerance (Decimal Inch) | -0.010 to 0.005 |
| Ring Thickness Tolerance (Decimal Inch) | 0.0020 to 0.0020 |
