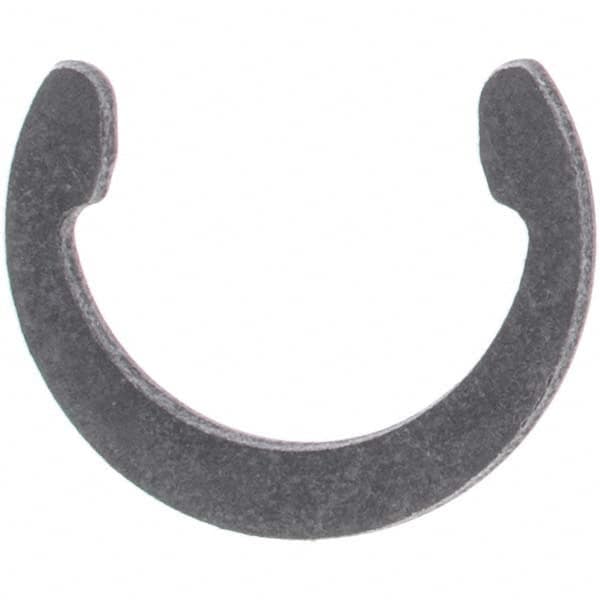

3/8″ Shaft Diam, 0.335″ Groove Diam, Spring Steel External C Style Retaining Ring 0.448″ Free OD, 0.328″ Free ID, 0.029″ Groove Width x 0.02″ Groove Depth, 0.025″ Ring Thickness, Grade 1060-1090
Item #: 99622193
Brand: Rotor Clip
Model #: C-37ST PA
Product Specifications
| Ring Type | C Style |
| System of Measurement | Inch |
| Groove Diameter | 0.335 in |
| Groove Diameter Tolerance | -0.0020 to 0.0020 in |
| Shaft Diameter (Inch) | 3/8 |
| Free Diameter | 0.328 in |
| Free Outside Diameter | 0.448 in |
| Groove Diameter (Decimal Inch) | 0.3350 |
| Material | Spring Steel |
| Free Outside Diameter (Decimal Inch) | 0.4480 |
| Free Diameter (Decimal Inch) | 0.3280 |
| Military Specification | Does Not Meet Military Specifications |
| Finish | Phosphate |
| Inside Diameter | 0.328 in |
| Finish/Coating | Phosphate |
| Groove Width Tolerance | 0.000 to 0.003 in |
| Groove Depth | 0.02 in |
| Ring Thickness Tolerance | -0.002 to 0.002 in |
| Material Grade | 1060-1090 |
| Groove Width (Decimal Inch) | 0.029 in |
| Groove Depth (Decimal Inch) | 0.0200 |
| Ring Thickness (Decimal Inch) | 0.025 in |
| Minimum Shaft Diameter (Decimal Inch) | 0.3750 |
| Maximum Shaft Diameter (Decimal Inch) | 0.3750 |
| Groove Diameter Tolerance (Decimal Inch) | -0.0020 to 0.0020 |
| Groove Width Tolerance (Decimal Inch) | 0.000 to 0.003 |
| Free Diameter Tolerance (Decimal Inch) | -0.003 to 0.005 |
| Ring Thickness Tolerance (Decimal Inch) | -0.002 to 0.002 |
| Ring Thickness Tol. (Plated Ring) (Decimal Inch) | -0.002 to 0.004 |
| Hardness | Rockwell 30N 67.5-72 |
