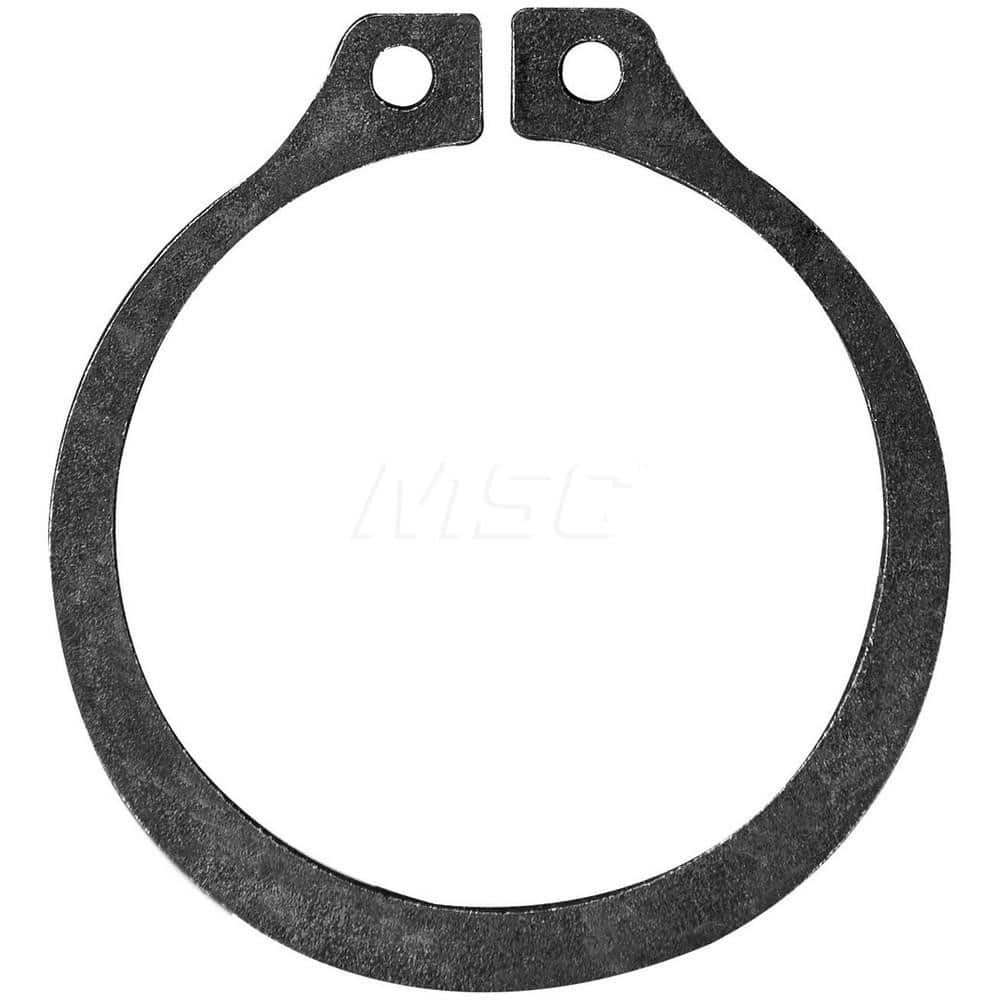

![60mm Shaft Diam, 57mm Groove Diam, Spring Steel Metric External SH Style Retaining Ring 55.8mm Free ID, 2.15mm Groove Width x 1.5mm Groove Depth, 2mm Ring Thickness, Grade 1060-1090](http://exactindustrialsupply.com/cdn/shop/products/4834792-21_200942b7-bde1-46ab-b5f3-3ddbab54c43c_1024x1024.jpg?v=1675195101)
60mm Shaft Diam, 57mm Groove Diam, Spring Steel Metric External SH Style Retaining Ring 55.8mm Free ID, 2.15mm Groove Width x 1.5mm Groove Depth, 2mm Ring Thickness, Grade 1060-1090
Item #: 99621716
Brand: Rotor Clip
Model #: DSH-60ST PD
Product Specifications
System of Measurement | Metric |
Groove Diameter Tolerance | -0.3 mm |
Shaft Diameter (mm) | 60.00 |
Groove Diameter (mm) | 57.00 |
Material | Spring Steel |
Free Diameter (mm) | 55.80 |
Military Specification | Does Not Meet Military Specifications |
Finish | Phosphate |
Inside Diameter | 55.8 mm |
Finish/Coating | Phosphate |
Groove Depth | 1.5 mm |
Ring Thickness Tolerance | -0.07 mm |
Meets Specification | Yes |
Material Grade | 1060-1090 |
Groove Width (mm) | 2.15 |
Groove Depth (mm) | 1.50 |
Ring Thickness (mm) | 2.00 |
Free Diameter Tolerance (mm) | -1.100 to 0.460 |
