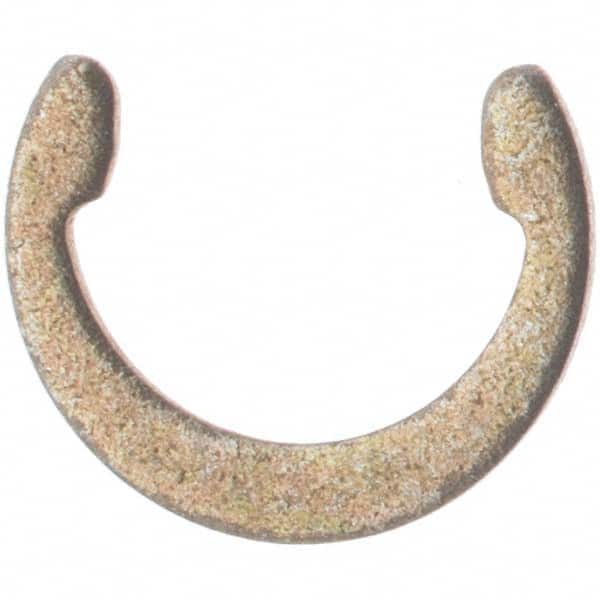

5/8″ Shaft Diam, 0.563″ Groove Diam, Spring Steel External C Style Retaining Ring 0.715″ Free OD, 0.553″ Free ID, 0.046″ Groove Width x 0.031″ Groove Depth, 0.035″ Ring Thickness, Grade 1060-1090
Item #: 99617847
Brand: Rotor Clip
Model #: C-62ST ZD-B
Product Specifications
| Ring Type | C Style |
| System of Measurement | Inch |
| Groove Diameter | 0.563 in |
| Groove Diameter Tolerance | -0.0030 to 0.0040 in |
| Shaft Diameter (Inch) | 5/8 |
| Free Diameter | 0.553 in |
| Free Outside Diameter | 0.715 in |
| Groove Diameter (Decimal Inch) | 0.5630 |
| Material | Spring Steel |
| Free Outside Diameter (Decimal Inch) | 0.7150 |
| Free Diameter (Decimal Inch) | 0.5530 |
| Military Specification | Does Not Meet Military Specifications |
| Finish/Coating | Zinc Yellow Dichromate |
| Groove Width Tolerance | 0.000 to 0.003 in |
| Groove Depth | 0.031 in |
| Ring Thickness Tolerance | -0.002 to 0.002 in |
| Material Grade | 1060-1090 |
| Groove Width (Decimal Inch) | 0.046 in |
| Groove Depth (Decimal Inch) | 0.0310 |
| Ring Thickness (Decimal Inch) | 0.035 in |
| Minimum Shaft Diameter (Decimal Inch) | 0.6250 |
| Maximum Shaft Diameter (Decimal Inch) | 0.6250 |
| Groove Diameter Tolerance (Decimal Inch) | -0.0030 to 0.0040 |
| Groove Width Tolerance (Decimal Inch) | 0.000 to 0.003 |
| Free Diameter Tolerance (Decimal Inch) | -0.006 to 0.006 |
| Ring Thickness Tolerance (Decimal Inch) | -0.002 to 0.002 |
