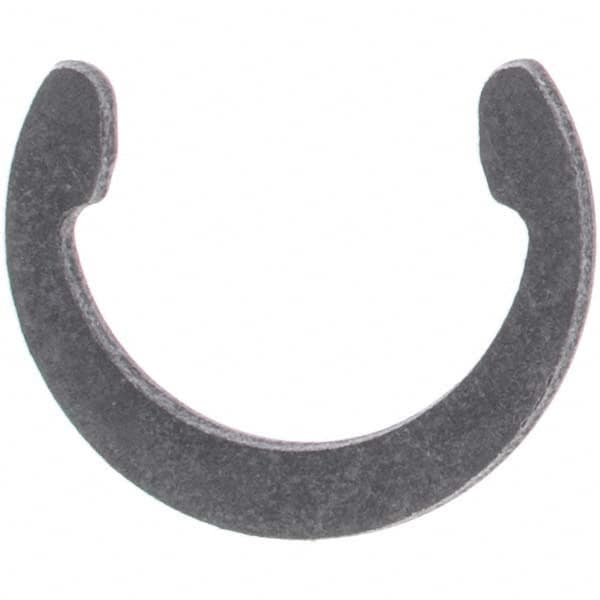

7/32″ Shaft Diam, 0.193″ Groove Diam, Spring Steel External C Style Retaining Ring 0.275″ Free OD, 0.187″ Free ID, 0.029″ Groove Width x 0.013″ Groove Depth, 0.025″ Ring Thickness, Grade 1060-1090
Item #: 99617680
Brand: Rotor Clip
Model #: C-21ST PA-B
Product Specifications
| Ring Type | C Style |
| System of Measurement | Inch |
| Groove Diameter | 0.193 in |
| Groove Diameter Tolerance | -0.0020 to 0.0015 in |
| Shaft Diameter (Inch) | 7/32 |
| Free Diameter | 0.187 in |
| Free Outside Diameter | 0.275 in |
| Groove Diameter (Decimal Inch) | 0.1930 |
| Material | Spring Steel |
| Free Outside Diameter (Decimal Inch) | 0.2750 |
| Free Diameter (Decimal Inch) | 0.1870 |
| Military Specification | Does Not Meet Military Specifications |
| Finish | Phosphate |
| Finish/Coating | Phosphate |
| Groove Width Tolerance | 0.000 to 0.003 in |
| Groove Depth | 0.013 in |
| Ring Thickness Tolerance | -0.002 to 0.002 in |
| Material Grade | 1060-1090 |
| Groove Width (Decimal Inch) | 0.029 in |
| Groove Depth (Decimal Inch) | 0.0130 |
| Ring Thickness (Decimal Inch) | 0.025 in |
| Minimum Shaft Diameter (Decimal Inch) | 0.2188 |
| Maximum Shaft Diameter (Decimal Inch) | 0.2188 |
| Groove Diameter Tolerance (Decimal Inch) | -0.0020 to 0.0015 |
| Groove Width Tolerance (Decimal Inch) | 0.000 to 0.003 |
| Free Diameter Tolerance (Decimal Inch) | -0.003 to 0.005 |
| Ring Thickness Tolerance (Decimal Inch) | -0.002 to 0.002 |
