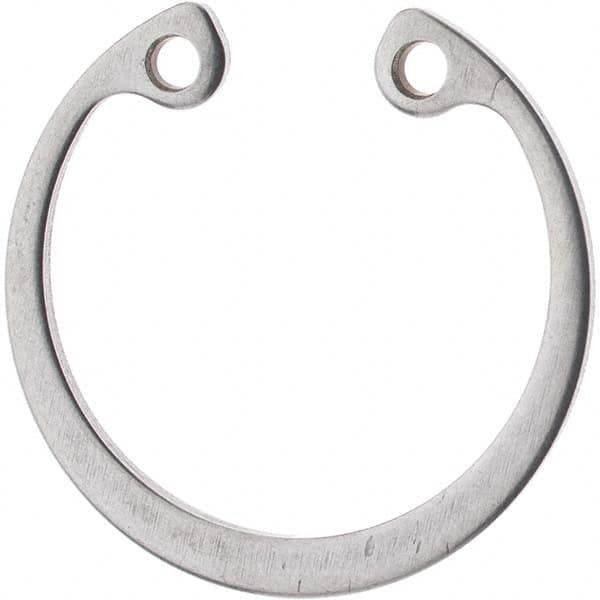

38mm Bore Diam, Stainless Steel Metric Internal Snap Retaining Ring 40.8mm Free OD, 1.6mm Groove Width x 1mm Groove Depth, 1.5mm Ring Thickness
Item #: 99616591
Brand: Rotor Clip
Model #: DHO-38SS
Product Specifications
Ring Type | Snap |
System of Measurement | Metric |
Bore Diameter (mm) | 38.00 |
Groove Diameter Tolerance | 0.000 to 0.250 mm |
Groove Diameter (mm) | 40.00 |
Material | Stainless Steel |
Groove Width (mm) | 1.60 |
Free Outside Diameter (mm) | 40.80 |
Military Specification | Does Not Meet Military Specifications |
Groove Depth | 1 mm |
Ring Thickness (mm) | 1.50 |
Ring Thickness Tolerance | -0.06 mm |
Thrust Load Capacity | 22.50 (Groove) kN; 28.2 (Ring) kN |
Meets Specification | No |
Standards | DIN 472 |
Material Grade | DIN 1.4122 |
Finish/Coating | Passivated |
Groove Depth (mm) | 1.00 |
Groove Diameter Tolerance (mm) | 0.000 to 0.250 |
