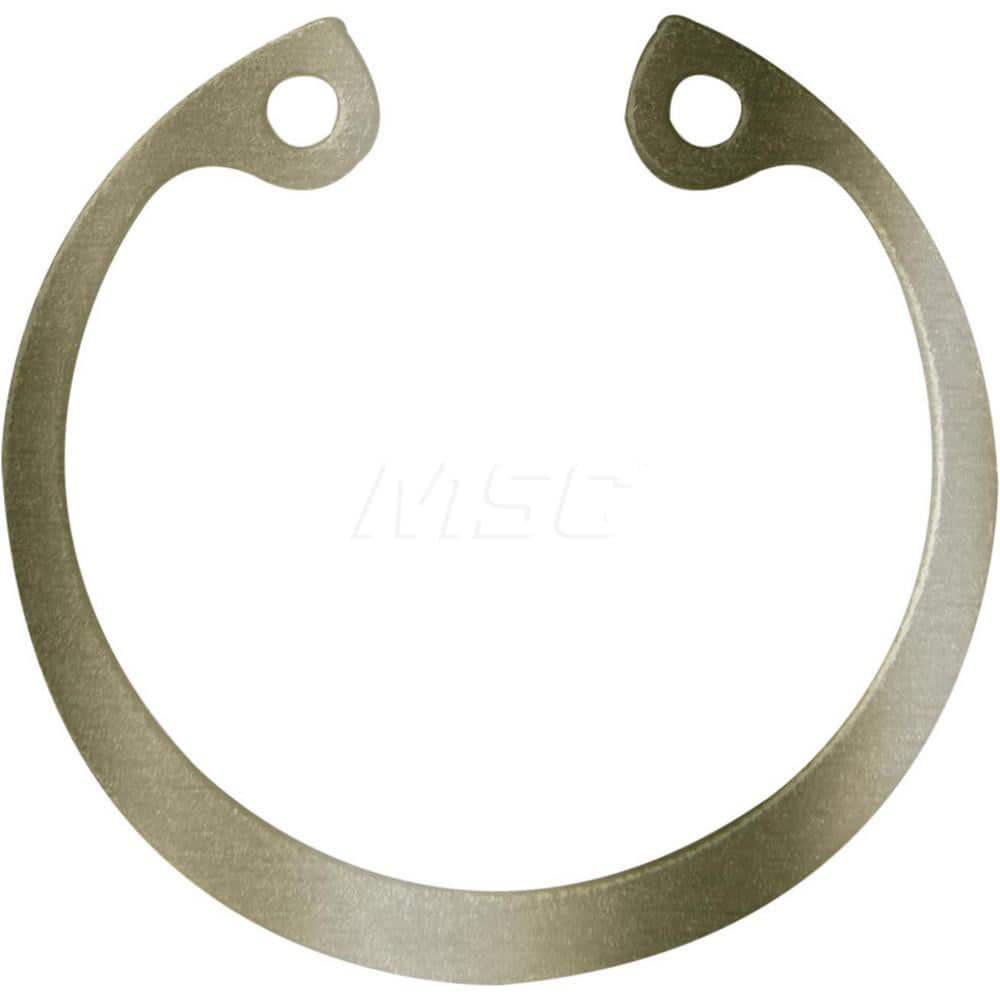

29/64″ Bore Diam, Spring Steel Internal Snap Retaining Ring 0.4531″ Free OD, 0.029″ Groove Width x 0.012″ Groove Depth, 0.025″ Ring Thickness
Item #: 99616583
Brand: Rotor Clip
Model #: HO-45ST ZD
Product Specifications
| Ring Type | Snap |
| System of Measurement | Inch |
| Groove Diameter | 0.477 in |
| Bore Diameter (Inch) | 29/64 |
| Groove Diameter Tolerance | -0.0020 to 0.0020 in |
| Free Outside Diameter | 0.4531 in |
| Groove Diameter (Decimal Inch) | 0.4770 |
| Material | Spring Steel |
| Groove Width (Decimal Inch) | 0.029 in |
| Free Outside Diameter (Decimal Inch) | 0.4531 |
| Groove Width Tolerance | 0.000 to 0.003 in |
| Military Specification | Does Not Meet Military Specifications |
| Groove Depth | 0.012 in |
| Ring Thickness (Decimal Inch) | 0.025 in |
| Ring Thickness Tolerance | -0.002 to 0.002 in |
| Material Grade | 1060-1090 |
| Finish/Coating | Zinc Yellow Dichromate |
| Groove Depth (Decimal Inch) | 0.0120 |
| Groove Diameter Tolerance (Decimal Inch) | -0.0020 to 0.0020 |
| Groove Width Tolerance (Decimal Inch) | 0.000 to 0.003 |
| Free Outside Diameter Tolerance (Decimal Inch) | -0.005 to 0.010 |
| Ring Thickness Tolerance (Decimal Inch) | -0.002 to 0.002 |
