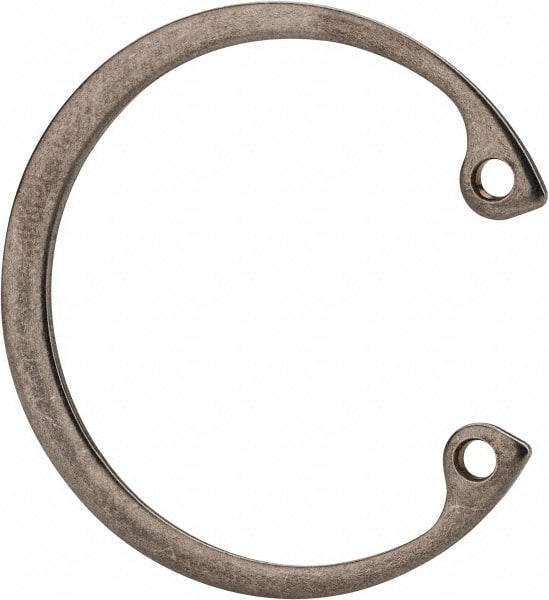

1-13/16″ Bore Diam, Stainless Steel Internal Snap Retaining Ring 1-13/16″ Free OD, 0.068″ Groove Width x 0.055″ Groove Depth, 0.062″ Ring Thickness
Item #: 99616435
Brand: Rotor Clip
Model #: HO-181SS
Product Specifications
| Ring Type | Snap |
| System of Measurement | Inch |
| Groove Diameter | 1.922 in |
| Bore Diameter (Inch) | 1-13/16 |
| Groove Diameter Tolerance | -0.0050 to 0.0050 in |
| Free Diameter | 2.012 in |
| Free Outside Diameter | 1.8125 in |
| Groove Diameter (Decimal Inch) | 1.9220 |
| Material | Stainless Steel |
| Groove Width (Decimal Inch) | 0.068 in |
| Free Outside Diameter (Decimal Inch) | 1.8125 |
| Groove Width Tolerance | 0.000 to 0.004 in |
| Military Specification | Does Not Meet Military Specifications |
| Groove Depth | 0.055 in |
| Ring Thickness (Decimal Inch) | 0.062 in |
| Ring Thickness Tolerance | -0.003 to 0.003 in |
| Thrust Load Capacity | 8450 (Groove Safety Factor) lb; 16139 (Ring Safety Factor) lb |
| Meets Specification | Yes |
| Material Grade | 15-7 Grade 632 |
| Finish/Coating | Passivated |
| Groove Depth (Decimal Inch) | 0.0550 |
| Groove Diameter Tolerance (Decimal Inch) | -0.0050 to 0.0050 |
| Groove Width Tolerance (Decimal Inch) | 0.000 to 0.004 |
| Free Outside Diameter Tolerance (Decimal Inch) | -0.025 to 0.035 |
| Ring Thickness Tolerance (Decimal Inch) | -0.003 to 0.003 |
