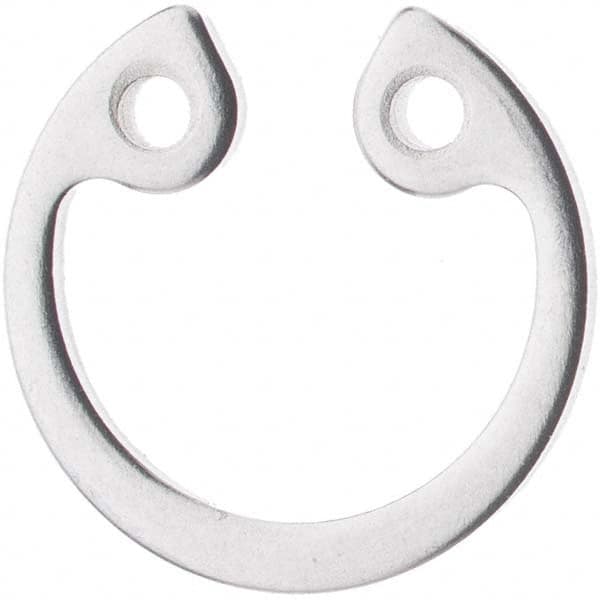

17mm Bore Diam, Stainless Steel Metric Internal Snap Retaining Ring 18.3mm Free OD, 1.1mm Groove Width x 0.4mm Groove Depth, 1mm Ring Thickness
Item #: 99616328
Brand: Rotor Clip
Model #: DHO-17SG
Product Specifications
| Ring Type | Snap |
| System of Measurement | Metric |
| Bore Diameter (mm) | 17.00 |
| Groove Diameter Tolerance | 0.000 to 0.110 mm |
| Groove Diameter (mm) | 17.80 |
| Material | Stainless Steel |
| Groove Width (mm) | 1.10 |
| Finish | Phosphate |
| Free Outside Diameter (mm) | 18.30 |
| Military Specification | Does Not Meet Military Specifications |
| Groove Depth | 0.4 mm |
| Ring Thickness (mm) | 1.00 |
| Ring Thickness Tolerance | -0.06 mm |
| Thrust Load Capacity | 3.60 (Groove) kN; 6.0 (Ring) kN |
| Meets Specification | No |
| Standards | DIN 472 |
| Material Grade | DIN 1.4122 |
| Finish/Coating | Passivated |
| Groove Depth (mm) | 0.40 |
| Groove Diameter Tolerance (mm) | 0.000 to 0.110 |
