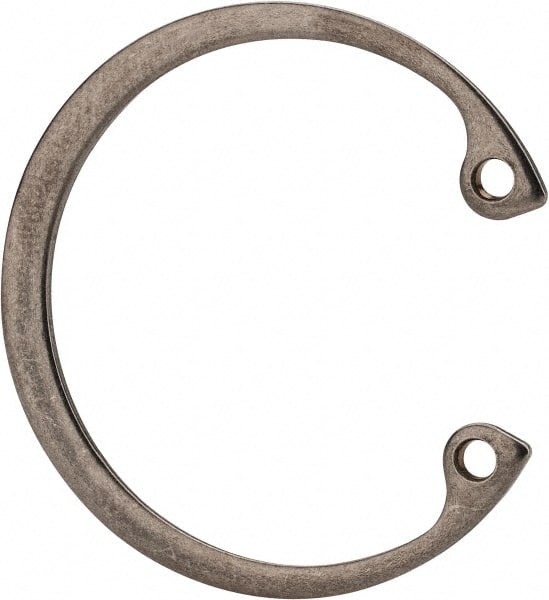

1-3/16″ Bore Diam, Stainless Steel Internal Snap Retaining Ring 1-3/16″ Free OD, 0.056″ Groove Width x 0.037″ Groove Depth, 0.05″ Ring Thickness
Item #: 99616146
Brand: Rotor Clip
Model #: HO-118SS
Product Specifications
| Ring Type | Snap |
| System of Measurement | Inch |
| Groove Diameter | 1.255 in |
| Bore Diameter (Inch) | 1-3/16 |
| Groove Diameter Tolerance | -0.0040 to 0.0050 in |
| Free Diameter | 1.319 in |
| Free Outside Diameter | 1.1875 in |
| Groove Diameter (Decimal Inch) | 1.2550 |
| Material | Stainless Steel |
| Groove Width (Decimal Inch) | 0.056 in |
| Free Outside Diameter (Decimal Inch) | 1.1875 |
| Groove Width Tolerance | 0.000 to 0.004 in |
| Military Specification | Does Not Meet Military Specifications |
| Groove Depth | 0.037 in |
| Ring Thickness (Decimal Inch) | 0.05 in |
| Ring Thickness Tolerance | -0.002 to 0.002 in |
| Thrust Load Capacity | 8526 (Ring Safety Factor) lb; 3700 (Groove Safety Factor) lb |
| Meets Specification | Yes |
| Material Grade | 15-7 Grade 632 |
| Finish/Coating | Passivated |
| Groove Depth (Decimal Inch) | 0.0370 |
| Groove Diameter Tolerance (Decimal Inch) | -0.0040 to 0.0050 |
| Groove Width Tolerance (Decimal Inch) | 0.000 to 0.004 |
| Free Outside Diameter Tolerance (Decimal Inch) | -0.020 to 0.025 |
| Ring Thickness Tolerance (Decimal Inch) | -0.002 to 0.002 |
