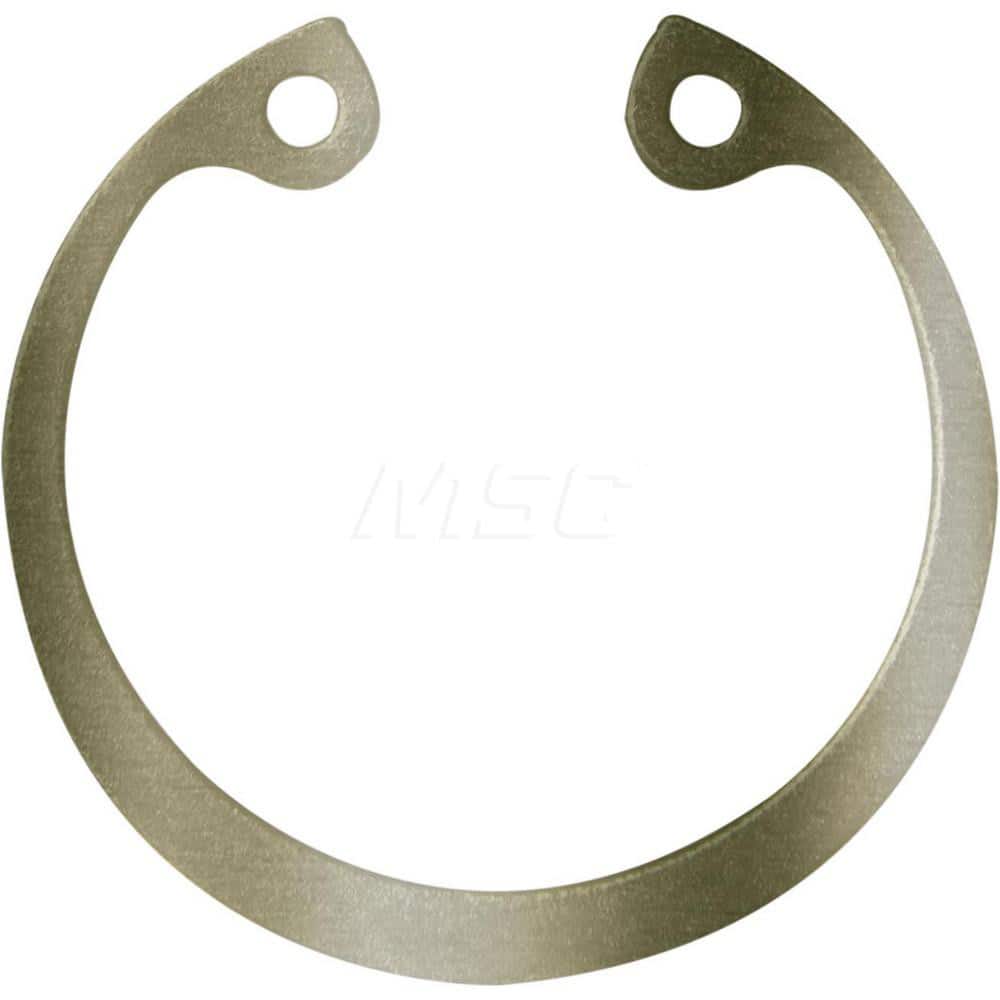

0.777″ Bore Diam, Spring Steel Internal Snap Retaining Ring 0.777″ Free OD, 0.046″ Groove Width x 0.024″ Groove Depth, 0.042″ Ring Thickness
Item #: 99616039
Brand: Rotor Clip
Model #: HO-77ST ZD
Product Specifications
| Ring Type | Snap |
| System of Measurement | Inch |
| Groove Diameter | 0.825 in |
| Bore Diameter (Decimal Inch) | 0.777 in |
| Groove Diameter Tolerance | -0.0030 to 0.0040 in |
| Free Outside Diameter | 0.777 in |
| Groove Diameter (Decimal Inch) | 0.8250 |
| Material | Spring Steel |
| Groove Width (Decimal Inch) | 0.046 in |
| Free Outside Diameter (Decimal Inch) | 0.7770 |
| Groove Width Tolerance | 0.000 to 0.003 in |
| Military Specification | Does Not Meet Military Specifications |
| Groove Depth | 0.024 in |
| Ring Thickness (Decimal Inch) | 0.042 in |
| Ring Thickness Tolerance | -0.002 to 0.002 in |
| Material Grade | 1060-1090 |
| Finish/Coating | Zinc Yellow Dichromate |
| Groove Depth (Decimal Inch) | 0.0240 |
| Groove Diameter Tolerance (Decimal Inch) | -0.0030 to 0.0040 |
| Groove Width Tolerance (Decimal Inch) | 0.000 to 0.003 |
| Free Outside Diameter Tolerance (Decimal Inch) | -0.005 to 0.010 |
| Ring Thickness Tolerance (Decimal Inch) | -0.002 to 0.002 |
