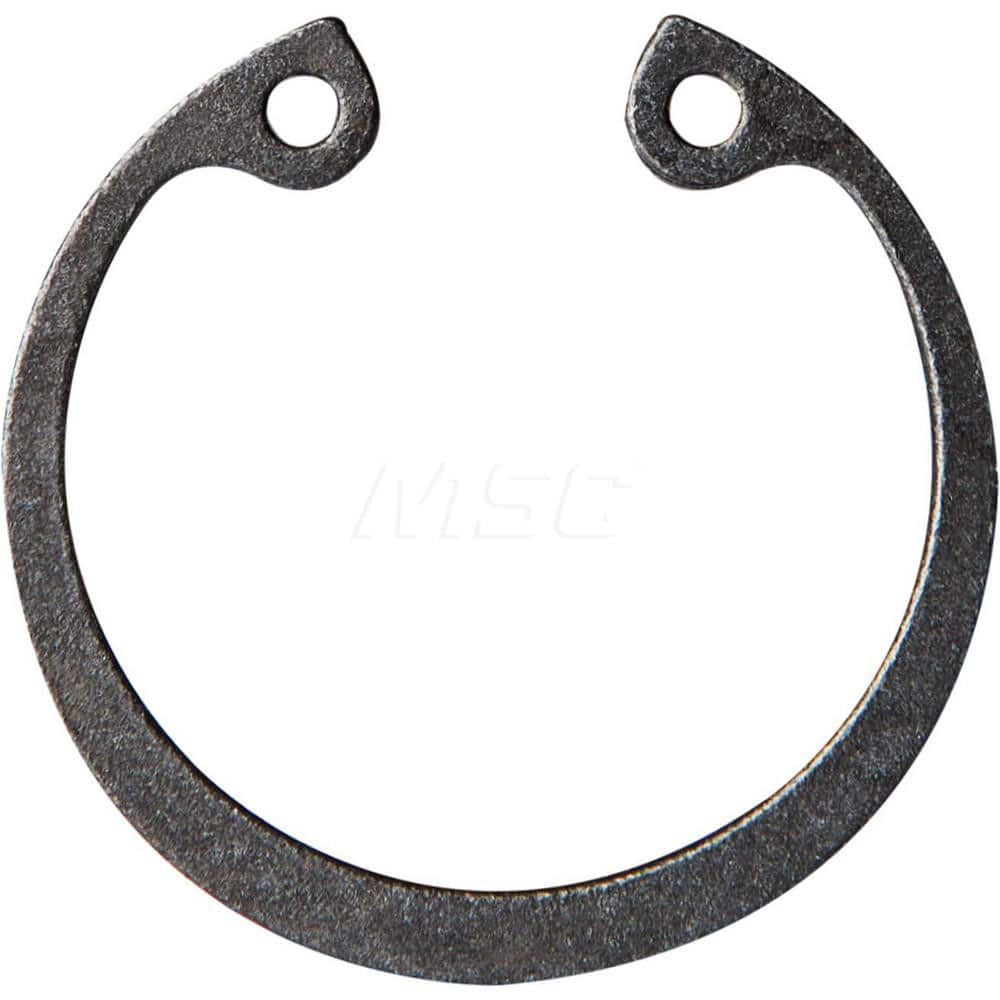

1-3/8″ Bore Diam, Spring Steel Internal Snap Retaining Ring 1.526″ Free OD, 0.056″ Groove Width x 0.043″ Groove Depth, 0.05″ Ring Thickness
Item #: 99615866
Brand: Rotor Clip
Model #: HO-137ST PD-B
Product Specifications
| Ring Type | Snap |
| System of Measurement | Inch |
| Groove Diameter | 1.461 in |
| Bore Diameter (Inch) | 1-3/8 |
| Bore Diameter (Decimal Inch) | 1.375 in |
| Groove Diameter Tolerance | -0.0040 to 0.0050 in |
| Free Outside Diameter | 1.526 in |
| Groove Diameter (Decimal Inch) | 1.4610 |
| Material | Spring Steel |
| Groove Width (Decimal Inch) | 0.056 in |
| Finish | Phosphate |
| Free Outside Diameter (Decimal Inch) | 1.5260 |
| Groove Width Tolerance | 0.000 to 0.004 in |
| Military Specification | Does Not Meet Military Specifications |
| Groove Depth | 0.043 in |
| Ring Thickness (Decimal Inch) | 0.05 in |
| Ring Thickness Tolerance | -0.002 to 0.002 in |
| Material Grade | 1060-1090 |
| Finish/Coating | Phosphate |
| Groove Depth (Decimal Inch) | 0.0430 |
| Groove Diameter Tolerance (Decimal Inch) | -0.0040 to 0.0050 |
| Groove Width Tolerance (Decimal Inch) | 0.000 to 0.004 |
| Ring Thickness Tolerance (Decimal Inch) | -0.002 to 0.002 |
| Free Diameter (mm) | 38.76 |
