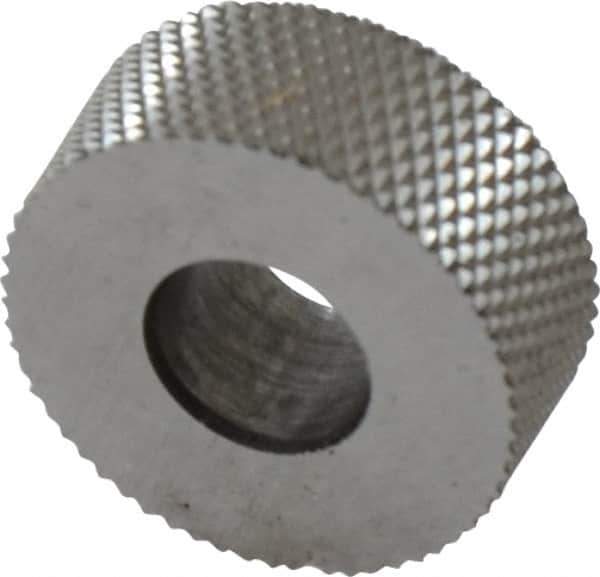

Value Collection - 5/8" Diam, 80° Tooth Angle, Standard (Shape), Form Type High Speed Steel Male Diamond Knurl Wheel - 1/4" Face Width, 1/4" Hole, 96 Diametral Pitch, 30° Helix, Bright Finish, Series GK
Item #: 98287519
Brand: Value Collection
Exact Tooling IR#: 04
Features and Benefits
Male diamond wheels are used to create a female diamond knurl pattern.
Form wheels produce textured patterns by forming an impression. This process displaces the material and increases the diameter of the workpiece.
High speed steel (HSS) provides good wear-resistance and can be used in general purpose applications for both ferrous and nonferrous materials.
| Product Specifications | |
|---|---|
| Knurl Shape | Standard |
| Pattern | Male Diamond |
| Form or Cut Type | Form |
| Material | High Speed Steel |
| Knurl Diameter (Inch) | 5/8 |
| Face Width (Decimal Inch) | 0.2500 |
| Face Width (Inch) | 1/4 |
| Hole Diameter (Inch) | 1/4 |
| Pitch System | Diametral |
| Diametral Pitch | 96 |
| Knurl Series | GK |
| Included Tooth Angle | 80 |
| Finish/Coating | Bright |
| Helix Angle | 30 |
