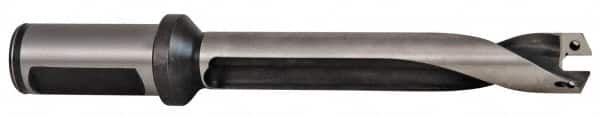

Allied Machine and Engineering - 0.5512" to 0.5902" Diam 3xD 45mm Max Depth Helical Flute Spade Drill
Item #: 92520477
Brand: Allied Machine and Engineering
Model #: 60314H-20FM
Features and Benefits
Helical flutes are used for vertical machining center applications.
| Product Specifications | |
|---|---|
| Series | 14 |
| Minimum Drill Diameter (Decimal Inch) | 0.5512 |
| Maximum Drill Diameter (Decimal Inch) | 0.5902 |
| Shank Type | Straight Shank with Flange |
| Shank Diameter (mm) | 20.00 |
| Shank Diameter (Decimal Inch) | 0.7874 |
| Spade Drill Length | Standard Length |
| Overall Length (mm) | 122.40 |
| Drill Depth by Diameter Ratio | 3xD |
| Maximum Drill Depth (mm) | 45.00 |
| Maximum Drill Depth (Decimal Inch) | 1.7720 |
| Flute Type | Helical Flute |
| Flute Length (mm) | 72.40 |
| Body Length (mm) | 72.40 |
| Shank Length (mm) | 50.00 |
| Shank End Coolant Hole Thread Size (Inch) | 1/8 |
