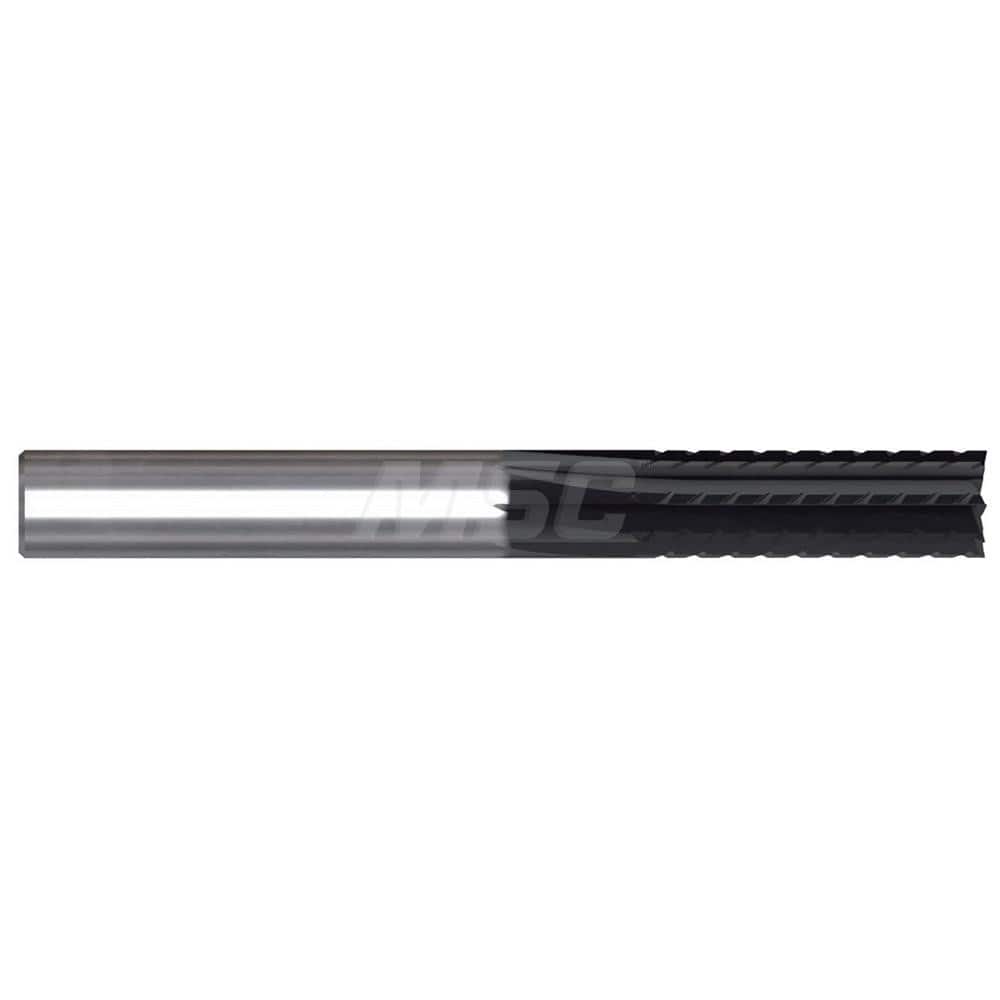

Straight Router Bits; Cutting Diameter (Decimal Inch): 0.3750; Cutting Diameter (Inch): 3/8; Cutting Diameter (mm): 9.53; End Type: End Mill; Number of Flutes: 8; Length of Cut (mm): 25.4000; Length of Cut (Decimal Inch): 1.0000; Length of Cut (Inch): 1;
Item #: 96101217
Brand: YG-1
Model #: URT5P1AD0375
Product Specifications
| Cutting Diameter (Decimal Inch) | 0.3750 |
| Cutting Diameter (Inch) | 3/8 |
| Cutting Diameter (mm) | 9.53 |
| End Type | End Mill |
| Number of Flutes | 8 |
| Length of Cut (mm) | 25.4000 |
| Length of Cut (Decimal Inch) | 1.0000 |
| Length of Cut (Inch) | 1 |
| Material Application | CFRP + GFRP |
| Material | Micro Grain Carbide |
| Shank Diameter (Inch) | 3/8 |
| Shank Diameter (mm) | 9.5250 |
| Cutting Direction | Right |
| Overall Length (Inch) | 3.0000 |
| Overall Length (mm) | 76.2000 |
| Flute Type | Straight |
| Description | High Performance Machining Of Cfrp, Can Be Used As Rougher Or Finisher Yg-1 Special Cvd Coating For Extended Tool Life And Better Abrasion Resistance |
