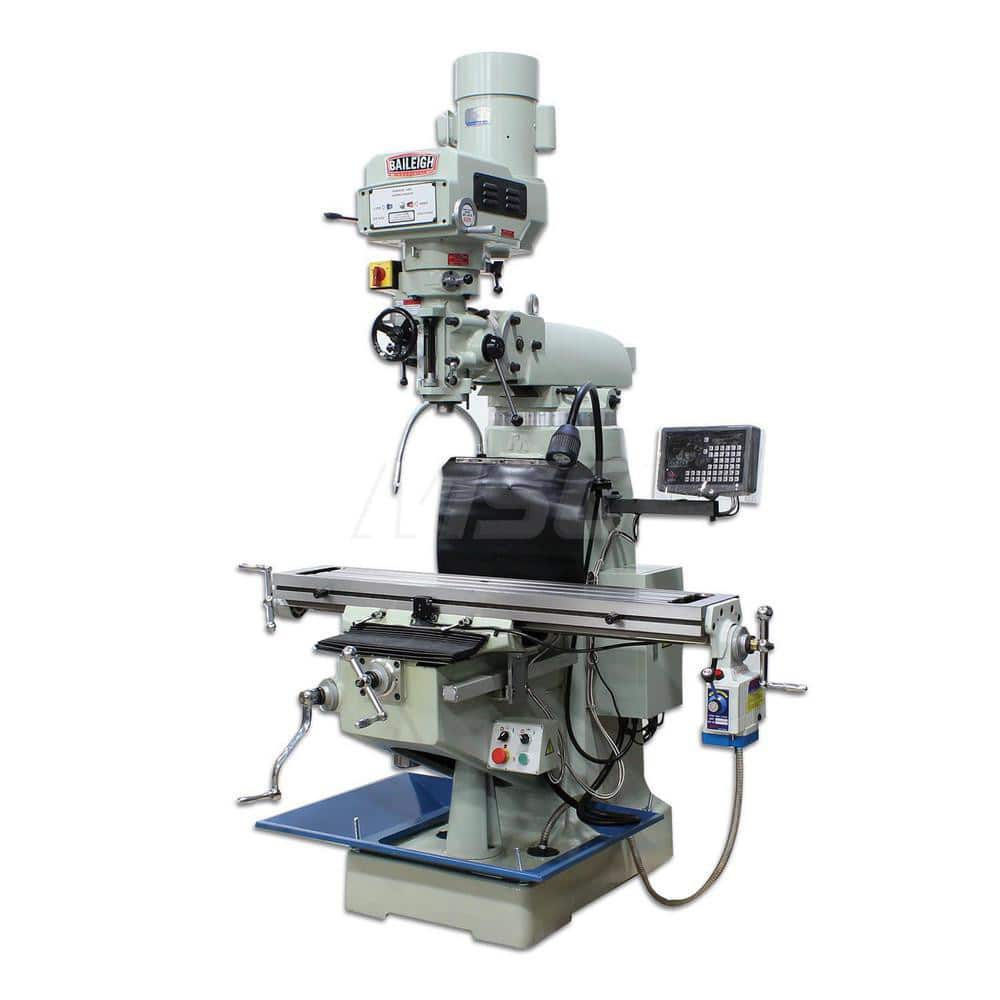

Knee Milling Machine: Variable Speed Control, 1 Phase 60 to 4,200 RPM, R8 Spindle Taper
Item #: 96083498
Brand: Baileigh
Model #: 1019108
Product Specifications
| Maximum Spindle to Table Distance (Decimal Inch) | 18.5000 |
| Minimum Spindle Speed | 60 RPM |
| Maximum Spindle Speed | 4200 RPM |
| Forward Head Tilt (Degrees) | 45 |
| Phase | 1 |
| Backward Head Tilt (Degrees) | 45 |
| Left-Hand Head Tilt (Degrees) | 90 |
| Right-Hand Head Tilt (Degrees) | 90 |
| Cross Travel (Decimal Inch) | 31.6250 |
| Longitudinal Travel (Decimal Inch) | 31.6250 |
| Knee Travel (Decimal Inch) | 15.9840 |
| Table Length (Inch) | 49 |
| Table Width (Inch) | 9 |
| Spindle Speed Control | Variable Speed |
| Spindle Taper Size | R8 |
| Spindle Travel Length (Decimal Inch) | 4.9000 |
| Includes | X Power Feed |
