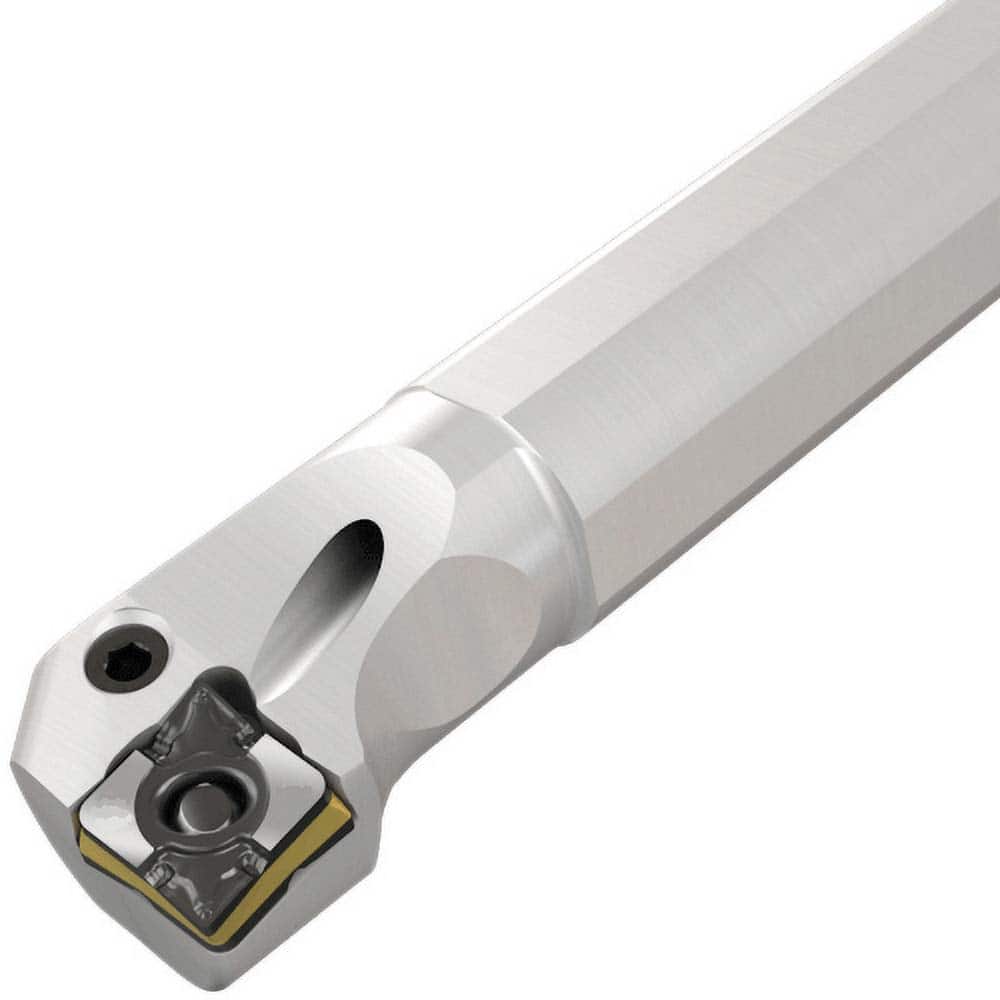

1″ Min Bore, Left Hand A-PCLXL Indexable Boring Bar 8″ OAL, 3/4″ Shank Diam, Uses CXMG, A-PCLXL Inserts, Through Coolant
Item #: 95552725
Brand: Iscar
Model #: 3346714
Product Specifications
| Minimum Bore Diameter (Decimal Inch) | 1.0000 |
| Minimum Bore Diameter (Inch) | 1 |
| Maximum Bore Depth (Decimal Inch) | 1.1800 |
| Toolholder Style | A-PCLXL |
| Insert Compatibility | CXMG |
| Shank Diameter (Decimal Inch) | 0.7500 |
| Hand of Holder | Left Hand |
| Shank Diameter (Inch) | 3/4 |
| Overall Length (Decimal Inch) | 8.0000 |
| Overall Length (Inch) | 8 |
| Insert Holding Method | Lever |
| Compatible Insert Shape | Diamond |
| Rake | Positive (Radial); Positive (Axial) |
| Cutting Direction | Left Hand |
| Series | Isoturn |
| Multi-use Tool | No |
| Cutting Tool Application | Turning |
| Center to Cutting Edge (Decimal Inch) | 0.5120 |
| Standards | ISO 13399 |
| Number of Inserts Used on Toolholder | 1 |
| Maximum Bore Diameter (mm) | 76.20 |
| Maximum Bore Diameter (Decimal Inch) | 3.0000 |
| Number of Inserts Included in Order | 0 |
| Coolant Through | Yes |
