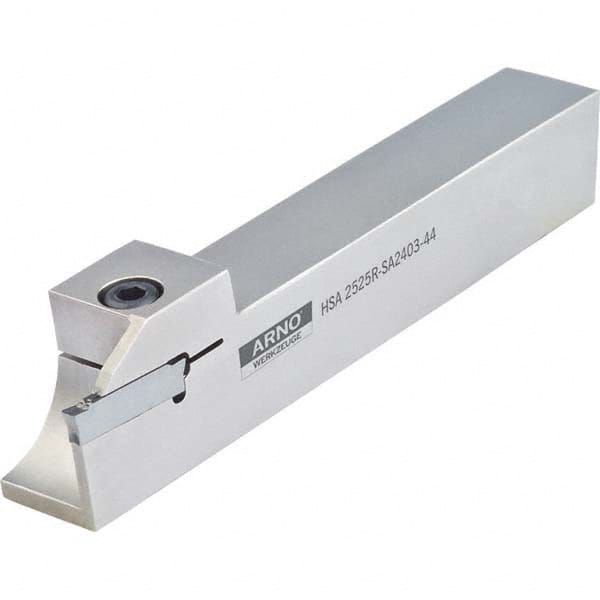

0.512″ Max Depth, 0.079 to 1.024″ Width, External Right Hand Indexable Grooving/Cutoff Toolholder 4.331″ OAL, Uses SA 24-20\x85 Inserts, HSA Monoblock Toolholder, Through Coolant, Series SA Parting / Grooving
Item #: 95418497
Brand: Arno
Model #: 502427
Product Specifications
| Internal or External | External |
| Maximum Depth of Cut (Decimal Inch) | 0.5120 |
| Maximum Depth of Cut (mm) | 13.00 |
| Hand of Holder | Right Hand |
| Maximum Groove Width (Decimal Inch) | 1.0240 |
| Minimum Groove Width (Decimal Inch) | 0.0790 |
| Minimum Groove Width (mm) | 2.01 |
| Toolholder Style | HSA Monoblock |
| Insert Holding Method | Screw |
| Insert Compatibility | SA 24-20? |
| Shank Height (Inch) | 1/2 |
| Shank Width/Diameter (Decimal Inch) | 0.5000 |
| Series | Grooving; SA Parting |
| Overall Length (Decimal Inch) | 4.3310 |
| Head Length (Decimal Inch) | 0.5120 |
| Manufacturers Catalog Number | HSA 1212S-R-SA2402-26-ACS2-.500 |
| Coolant Through | Yes |
