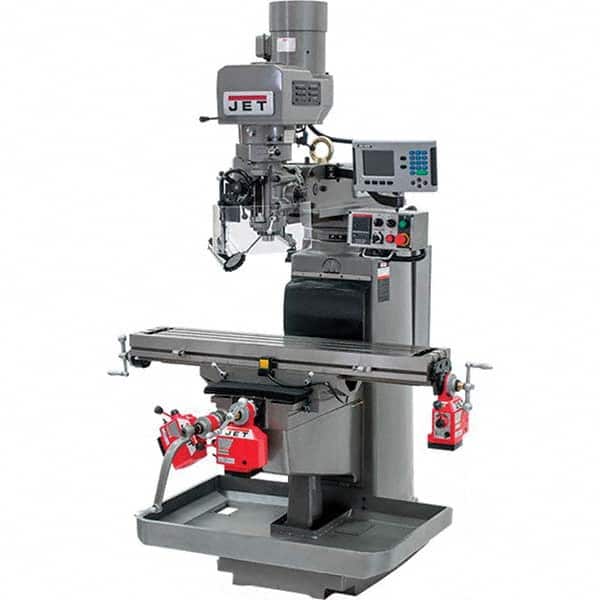

Knee Milling Machine: 4.75″, Electronic Variable Speed Control, 3 Phase 60 to 4,500 RPM, R8 Spindle Taper
Item #: 95176103
Brand: Jet
Model #: 690680
Product Specifications
| Minimum Spindle to Column Distance (Decimal Inch) | 4.7500 |
| Minimum Spindle to Column Distance (Inch) | 4-3/4 in |
| Minimum Spindle to Column Distance (mm) | 26.75 |
| Minimum Spindle Speed | 60 RPM |
| Maximum Spindle Speed | 4500 RPM |
| Forward Head Tilt (Degrees) | 45 |
| Phase | 3 |
| Left-Hand Head Tilt (Degrees) | 90 |
| Left-hand Head Tilt | 90.0 ? |
| Right-Hand Head Tilt (Degrees) | 45 |
| Right-hand Head Tilt | 45.0 ? |
| Cross Travel (Decimal Inch) | 16.1250 |
| Cross Travel | 16.125 in |
| Longitudinal Travel | 29.875 in |
| Longitudinal Travel (Decimal Inch) | 29.8750 |
| Knee Travel (Decimal Inch) | 16.1250 |
| Knee Travel | 16.125 in |
| Quill Diameter (Inch) | 3-3/8 |
| Voltage | 230 |
| Table Load Capacity (kg) | 3.00 |
| Table Length (Inch) | 10 |
| Table Width (Inch) | 50 |
| Ram Turret Swivel (Degrees) | 3 |
| Ram Travel Length (Decimal Inch) | 15.8750 |
| Ram Travel Length (Inch) | 15-7/8 |
| Spindle Speed Control | Electronic Variable Speed |
| Spindle Taper Size | R8 |
| Spindle Travel Length (Decimal Inch) | 5.0000 |
| Spindle Travel Length (Inch) | 5 |
| Includes | ACU-RITE 203 |
| Maximum Spindle To Column Distance (mm) | 840.00 |
