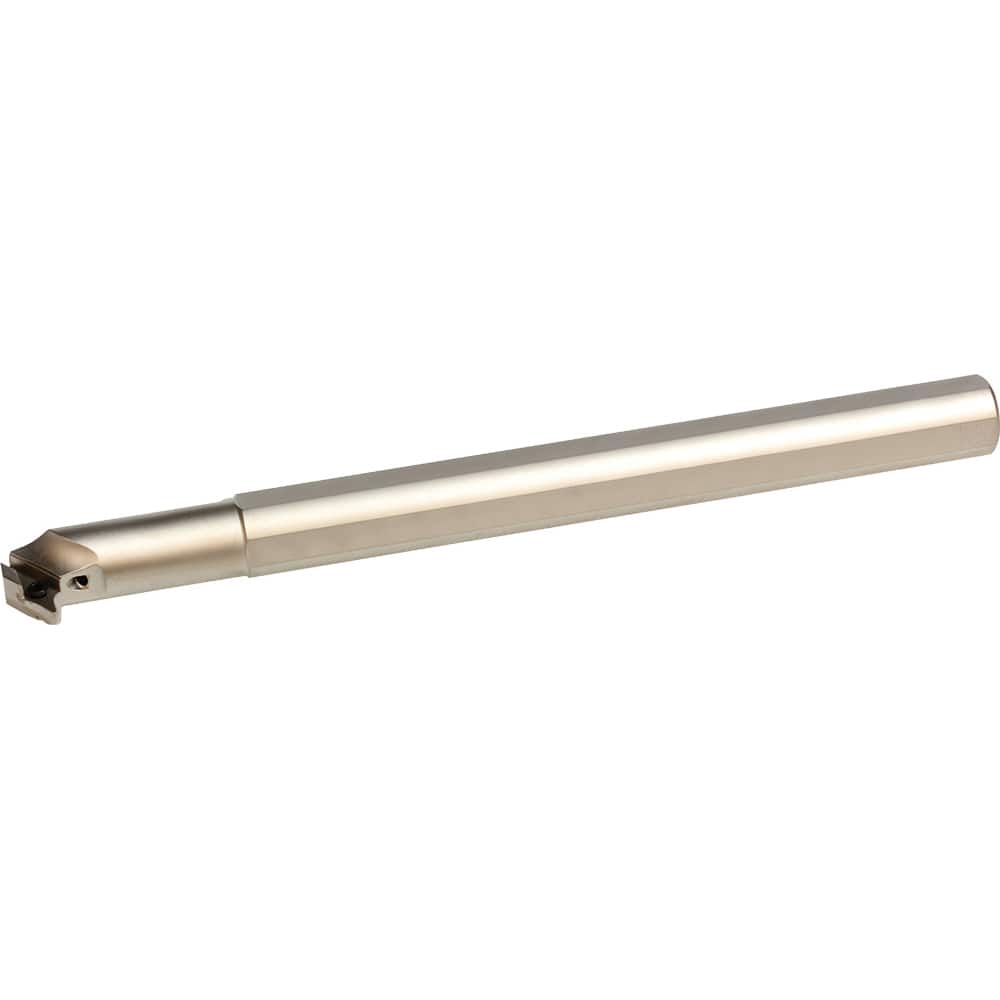

24.89mm Min Bore, 40.5mm Max Depth, Left Hand A...SVZB Indexable Boring Bar 254mm OAL, 3/4″ Shank Diam, 93° Lead Angle, Uses VBMT22 ™, VBGT22 ™, VBET22 ™, VBGW22 ™, A...SVZB Inserts, Through Coolant
Item #: 95069530
Brand: Kyocera
Model #: THC14093
Product Specifications
Minimum Bore Diameter (mm) | 24.89 |
Maximum Bore Depth (mm) | 40.50 |
Toolholder Style | A...SVZB |
Tool Material | Steel |
Insert Compatibility | VBET22?; VBGW22?; VBMT22?; VBGT22? |
Shank Diameter (Decimal Inch) | 0.7500 |
Hand of Holder | Left Hand |
Shank Diameter (Inch) | 3/4 |
Overall Length (mm) | 254.00 |
Insert Holding Method | Screw |
Rake | Positive |
Series | DYNB |
Insert Inscribed Circle (Inch) | 1/4 |
Multi-use Tool | No |
Center to Cutting Edge (mm) | 18.00 |
Number of Inserts Used on Toolholder | 1 |
Insert Thickness (Inch) | 1/8 |
Coolant Hole Diameter (mm) | 5.00 |
Manufacturers Catalog Number | A12SSVZBL2AE |
Radial Rake | -7 |
Coolant Through | Yes |
