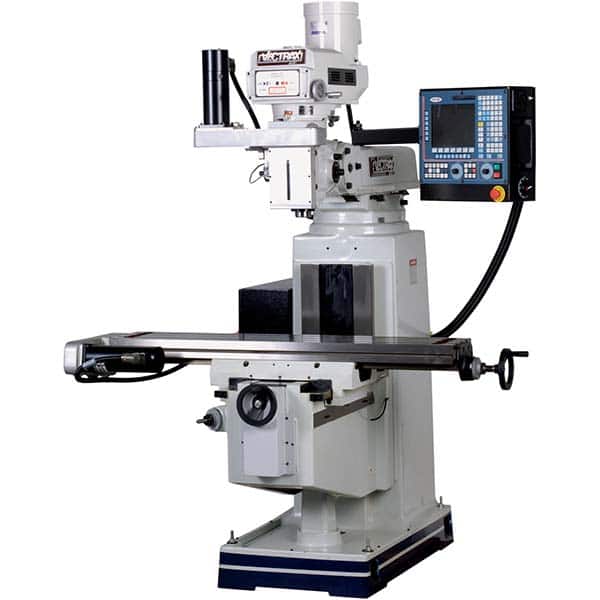

CNC Milling Machine: 10 x 54″ Table, 3 Phase Variable Speed Pulley Control, R8 Taper, 32″ Longitudinal Travel, 16.5″ Cross Travel, 5 hp
Item #: 94934700
Brand: Vectrax
Model #: 0994247/8677681
Product Specifications
| Spindle Speed Control | Variable Speed Pulley |
| Table Length (Decimal Inch) | 54.0000 |
| Table Length (Inch) | 54 |
| Table Width (Inch) | 10 |
| Phase | 3 |
| Longitudinal Travel (Inch) | 32 |
| Longitudinal Travel (Decimal Inch) | 32.0000 |
| Cross Travel (Decimal Inch) | 16.5000 |
| Knee Travel (Inch) | 17-1/2 |
| Knee Travel (Decimal Inch) | 17.5000 |
| Minimum Spindle Speed | 70 RPM |
| Maximum Spindle Speed | 3600 RPM |
| Spindle Travel Length (Decimal Inch) | 5.0000 |
| Spindle Travel Length (Inch) | 5 |
| Spindle Taper Size | R8 |
| Quill Diameter (Decimal Inch) | 3.7795 |
| Voltage | 220; 440 |
| Horsepower | 5.00 |
| Includes | 3/4-10 x 5 in Stud; Z-Axis Scale Mounting Kit; Bearing Retainer Bracket; X-Axis CNC Ballscrew; 8060 10 x 54 in Vectrax V/S CNC Mill Machine; 10 x 54 in 5 hp 3PH Vectrax Variable Speed Mill; 3/4-10 Flanged Nut; Limit Switch; Y-Axis CNC Ballscrew; X & Y-Axis Bracket Kit |
| Table Width/Diameter (Decimal Inch) | 10.0000 |
