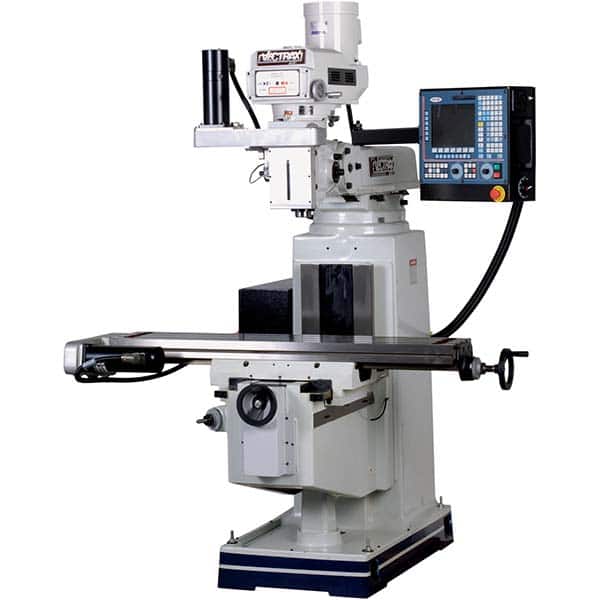

Knee Milling Machine: 3 hp, Variable Speed Pulley Control, 3 Phase 70 to 4,200 RPM, R8 Spindle Taper
Item #: 94934676
Brand: Vectrax
Model #: 0953802/7454095
Product Specifications
| Minimum Spindle Speed | 70 RPM |
| Maximum Spindle Speed | 4200 RPM |
| Phase | 3 |
| Cross Travel (Decimal Inch) | 12.0000 |
| Cross Travel | 12.0 in |
| Longitudinal Travel | 32.0 in |
| Longitudinal Travel (Decimal Inch) | 32.0000 |
| Knee Travel (Decimal Inch) | 16.0000 |
| Knee Travel | 16.0 in |
| Quill Diameter (Decimal Inch) | 3.3740 |
| Horsepower | 3.00 |
| Voltage | 220; 440 |
| Table Length (Inch) | 49 |
| Table Width (Inch) | 9 |
| Spindle Speed Control | Variable Speed Pulley |
| Spindle Taper Size | R8 |
| Spindle Travel Length (Decimal Inch) | 5.0000 |
| Spindle Travel Length (Inch) | 5 |
| Product Service Code | 3230 |
| Includes | Z-Axis Scale Mounting Kit; 3/8 in Baring Retainer Ring; Z-Axis Quill Kit; 3/4-10 Flanged Nut; 9x49 in X-Axis Ball Screw; Miniature Limit Switch; 8060 10x54 in 220/460V CNC Mill Machine; X & Y-Axis Bracket Kit; 9x49 in Y-Axis Ball Screw |
