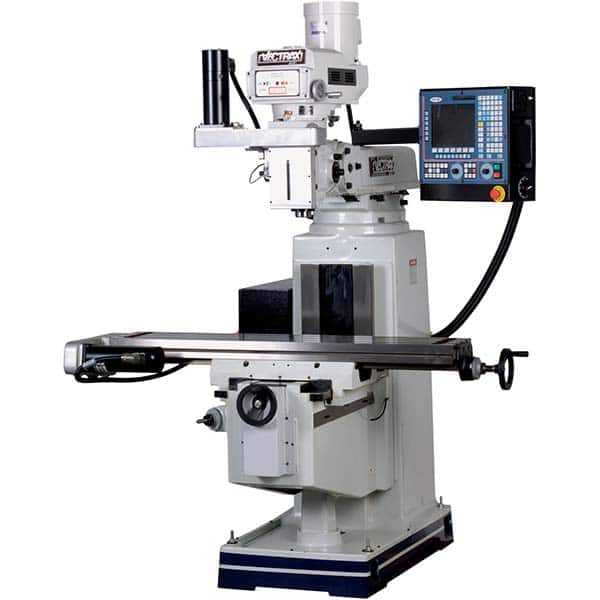

Knee Milling Machine: 5 hp, Variable Speed Pulley Control, 3 Phase 70 to 3,600 RPM, NT40 Spindle Taper
Item #: 94934668
Brand: Vectrax
Model #: 0951695&8677681
Product Specifications
| Minimum Spindle Speed | 70 RPM |
| Maximum Spindle Speed | 3600 RPM |
| Phase | 3 |
| Cross Travel (Decimal Inch) | 16.5000 |
| Cross Travel | 16.5 in |
| Longitudinal Travel | 32.0 in |
| Longitudinal Travel (Decimal Inch) | 32.0000 |
| Knee Travel (Decimal Inch) | 17.5000 |
| Knee Travel | 17.5 in |
| Quill Diameter (Decimal Inch) | 3.7790 |
| Horsepower | 5.00 |
| Voltage | 220; 440 |
| Table Length (Inch) | 54 |
| Table Width (Inch) | 10 |
| Spindle Speed Control | Variable Speed Pulley |
| Spindle Taper Size | NT40 |
| Spindle Travel Length (Decimal Inch) | 5.0000 |
| Spindle Travel Length (Inch) | 5 |
| Product Service Code | 3230 |
| Includes | 3/4-10 x 5 Stud; Z-Axis Scale Mounting Kit; 3/8 in Baring Retainer Ring; Z-Axis Quill Kit; 10 x 54 in X-Axis Special CNC Ball Screw; 3/4-10 Flanged Nut; Miniature Limit Switch; 10 x 54 in Y-Axis Special CNC Ball Screw; 8060 10 x 54 in 220/460V CNC Mill Machine; X & Y-Axis Bracket Kit |
