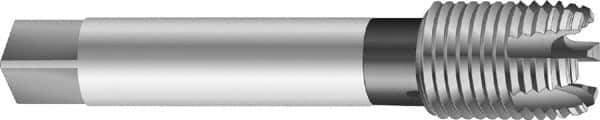

Emuge - 1-3/4 - 8 UNS, 6 Flute, Nitride Finish, Cobalt Spiral Point Tap - Modified Bottoming Chamfer, Right Hand Thread, 7-7/8" OAL, 1.772" Thread Length, 1.43" Shank Diam, 3BX Class of Fit
Item #: 94326675
Brand: Emuge
Model #: CU803011.5257
Exact Tooling IR#: 04
Features and Benefits
Modified bottoming chamfers are similar to bottoming chamfers, but they are longer and have more teeth. They are used for threading blind holes and can be found with ranges between 2 to 2-1/2 threads. Some modified bottoming chamfers are 2-1/2 to 3 threads.
Nitride is a thin, hard-shell coating that supports surface hardness of the tool. It is commonly used where abrasive or wearing conditions exist.
Cobalt is harder than high speed steel and provides better wear resistance. It is commonly used on high tensile alloys.
| Product Specifications | |
|---|---|
| Thread Size (Inch) | 1-3/4 - 8 |
| Number of Flutes | 6 |
| Chamfer | Modified Bottoming |
| Class of Fit | 3BX |
| Finish/Coating | Nitride |
| Material | Cobalt |
| Through Coolant | NonThrough Coolant |
| Thread Direction | Right Hand |
| Overall Length (Decimal Inch) | 7.8740 |
| Oversize | No |
| Thread Standard | UNS |
| Thread Length (Decimal Inch) | 1.7720 |
| Shank Diameter (Decimal Inch) | 1.4300 |
| Square Size (Decimal Inch) | 1.0720 |
| Material Application | Alloy Steel Castings; Heat-Treated Steel; High-Tensile Steel; Stainless Steel |
