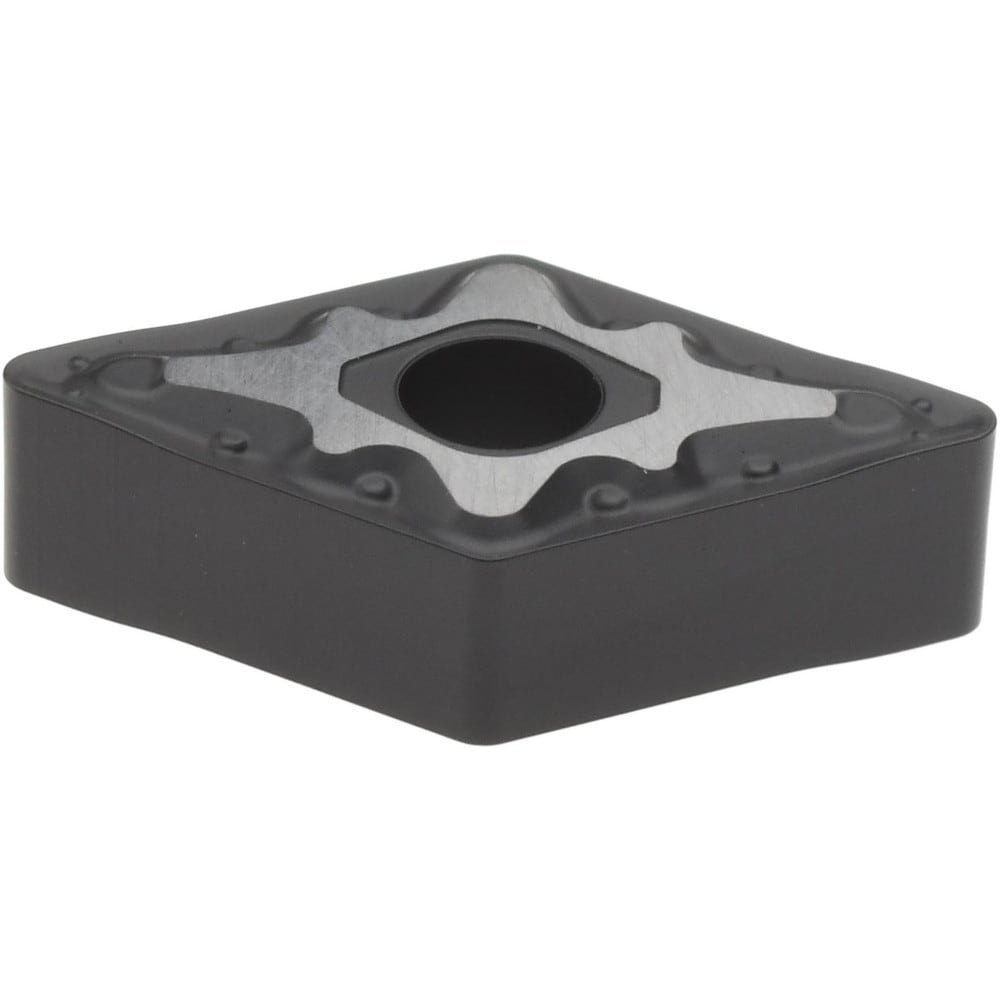

Turning Insert: DNMG110408WM+ ACP15K, Carbide
Item #: 75283697
Brand: Accupro
Model #: 75283697
Product Specifications
| ANSI Insert Code | DNMG |
| ISO Insert Code | DNMG110408 |
| Relief Angle | 0 |
| Insert Style | DNMG |
| Corner Radius (mm) | 0.80 |
| Corner Radius (Decimal Inch) | 0.0315 |
| Included Angle | 55 |
| Manufacturer Grade | ACP15K |
| Coating/Finish | CVD |
| Insert Hand | Neutral |
| Insert Thickness | 4.76 |
| Insert Thickness (Decimal Inch) | 0.1874 |
| Series | CI |
| Inscribed Circle (Decimal Inch) | 0.3752 |
| Inscribed Circle (mm) | 9.53 |
| Insert Material | Carbide |
| Insert Shape | D - Diamond (Rhombic) 55-Deg |
| Grade Characteristics | Cast Iron (K) - Moderate Wear-Resistance and Toughness; Stainless Steel (M) - High Wear-Resistance to Moderate Wear-Resistance and Toughness; Steel (P) - High Wear-Resistance to Moderate Wear-Resistance and Toughness |
| Side Clearance | Negative |
| Number Of Cutting Edges | 4 |
| Insert Shape Code | D |
| Hole Diameter (Decimal Inch) | 0.1512 |
| Maximum Depth of Cut (mm) | 4.00 |
| Maximum Depth of Cut (Decimal Inch) | 0.1575 |
| Insert Holding Method | Pin; Screw; Clamp; Lever Lock |
| Clearance Code | N |
| Tolerance Code | M |
| Primary Workpiece Material Code | P; K; M |
| Iso Code | DNMG110408 |
| Standards | ANSI Code: DNMG332 |
| Chip Breaker | WM+ |
| ISO Size Code | 110408 |
| UNSPSC Code | 23242105 |
| Insert Size Code | 11 |
| ANSI Insert Code | DNMG |
| ISO Insert Code | DNMG110408 |
| Relief Angle | 0 |
| Insert Style | DNMG |
| Corner Radius (mm) | 0.80 |
| Corner Radius (Decimal Inch) | 0.0315 |
| Included Angle | 55 |
| Manufacturer Grade | ACP15K |
| Coating/Finish | CVD |
| Insert Hand | Neutral |
| Insert Thickness | 4.76 |
| Insert Thickness (Decimal Inch) | 0.1874 |
| Series | CI |
| Inscribed Circle (Decimal Inch) | 0.3752 |
| Inscribed Circle (mm) | 9.53 |
| Insert Material | Carbide |
| Insert Shape | D - Diamond (Rhombic) 55-Deg |
| Grade Characteristics | Cast Iron (K) - Moderate Wear-Resistance and Toughness; Stainless Steel (M) - High Wear-Resistance to Moderate Wear-Resistance and Toughness; Steel (P) - High Wear-Resistance to Moderate Wear-Resistance and Toughness |
| Side Clearance | Negative |
| Number Of Cutting Edges | 4 |
| Insert Shape Code | D |
| Hole Diameter (Decimal Inch) | 0.1512 |
| Maximum Depth of Cut (mm) | 4.00 |
| Maximum Depth of Cut (Decimal Inch) | 0.1575 |
| Insert Holding Method | Pin; Screw; Clamp; Lever Lock |
| Clearance Code | N |
| Tolerance Code | M |
| Primary Workpiece Material Code | P; K; M |
| Iso Code | DNMG110408 |
| Standards | ANSI Code: DNMG332 |
| Chip Breaker | WM+ |
| ISO Size Code | 110408 |
| UNSPSC Code | 23242105 |
| Insert Size Code | 11 |
| MSC Part # | 75283697 |
| Mfr Part # | 75283697 |
| Country of Origin Country of Origin is subject to change | VARIOUS |
