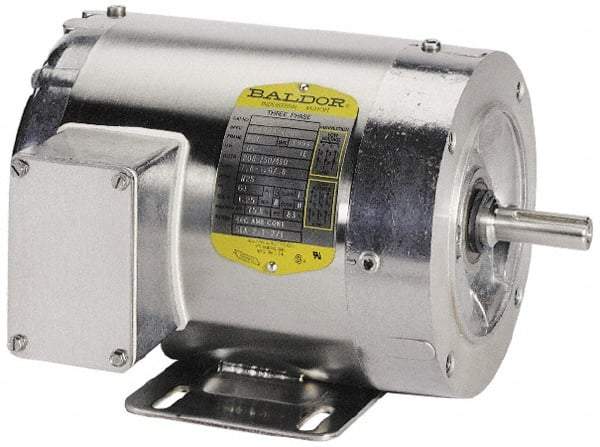

Baldor - 1 hp, TENV Enclosure, 1,725 RPM, 208-230/460 Volt, 60/50 Hz, Three Phase Energy Efficient Motor - Size 56C Frame, C-Face/Base Mount, 1 Speed, Ball Bearings, 1.60 Full Load Amps, F Class Insulation
Item #: 91797159
Brand: Baldor
Model #: CSWDM3546
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Motor Type | Three Phase Energy Efficient |
| Type of Enclosure | TENV |
| Horsepower | 1 |
| Name Plate RPMs | 1725 |
| Voltage | 208-230/460 |
| Frequency Hz | 60/50 |
| Frame Size | 56C |
| Mount Type | C-Face/ Base |
| Number of Speeds | 1 |
| Bearing Type | Ball |
| Applications | Washdown |
| Full Load Amperage | 1.60 |
| Insulation Class | F |
| Frame Material | Stainless Steel |
| Overall Length (Decimal Inch) | 12.0700 |
| Shaft Diameter x Length (Inch) | 5/8 x 1-7/8 |
| Full Load Efficiency Rating | 81.50 |
| Service Factor Rating | 1.15 |
| PSC Code | 6105 |
