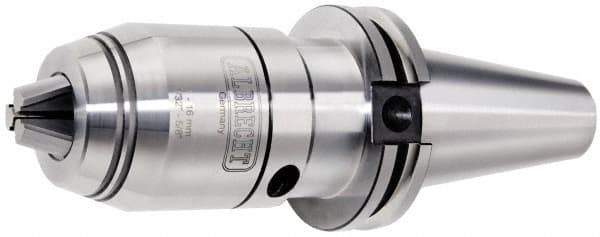

Albrecht - CAT50, 1/32 to 5/8" Capacity, Steel Integral Shank Drill Chuck - Keyed, Taper Shank, 1.97" Sleeve Diam, 3.31" Open Length
Item #: 91771600
Brand: Albrecht
Model #: 75406
Exact Tooling IR#: 04
Features and Benefits
Integral shank drill chucks are designed with the arbor (shank) built into the drill chuck, providing greater rigidity and concentricity than a press-fit tapered mount.
Keyed chucks are engineered to either loosen or tighten the hold on a tool by using a key. Keyed chucks offer the advantage of applying additional torque on the bit when slippage is a concern during heavy-duty applications.
Ball bearings are designed to reduce friction in the tightening mechanism and provide a better grip on the drill. They are used for heavy-duty machining and require a key for tightening or loosening.
Steel is strong and durable but less corrosion resistant than stainless steel. To improve its resistance to corrosion, it may receive additional finishes and coatings.
| Product Specifications | |
|---|---|
| Maximum Drill Chuck Capacity (mm) | 16.00 |
| Maximum Drill Chuck Capacity (Inch) | 5/8 |
| Minimum Drill Chuck Capacity (mm) | 1.00 |
| Minimum Drill Chuck Capacity (Inch) | 1/32 |
| Mount Type | Integral Shank |
| Mounting Size | CAT50 |
| Key Style | Keyed |
| Bearing Type | Ball Bearing |
| Material | Steel |
| Maximum RPM | 7000 |
| Closed Length (Decimal Inch) | 3.7800 |
| Shank Type | Taper Shank |
| Open Length (Decimal Inch) | 3.3100 |
| Sleeve Diameter (Decimal Inch) | 1.9700 |
