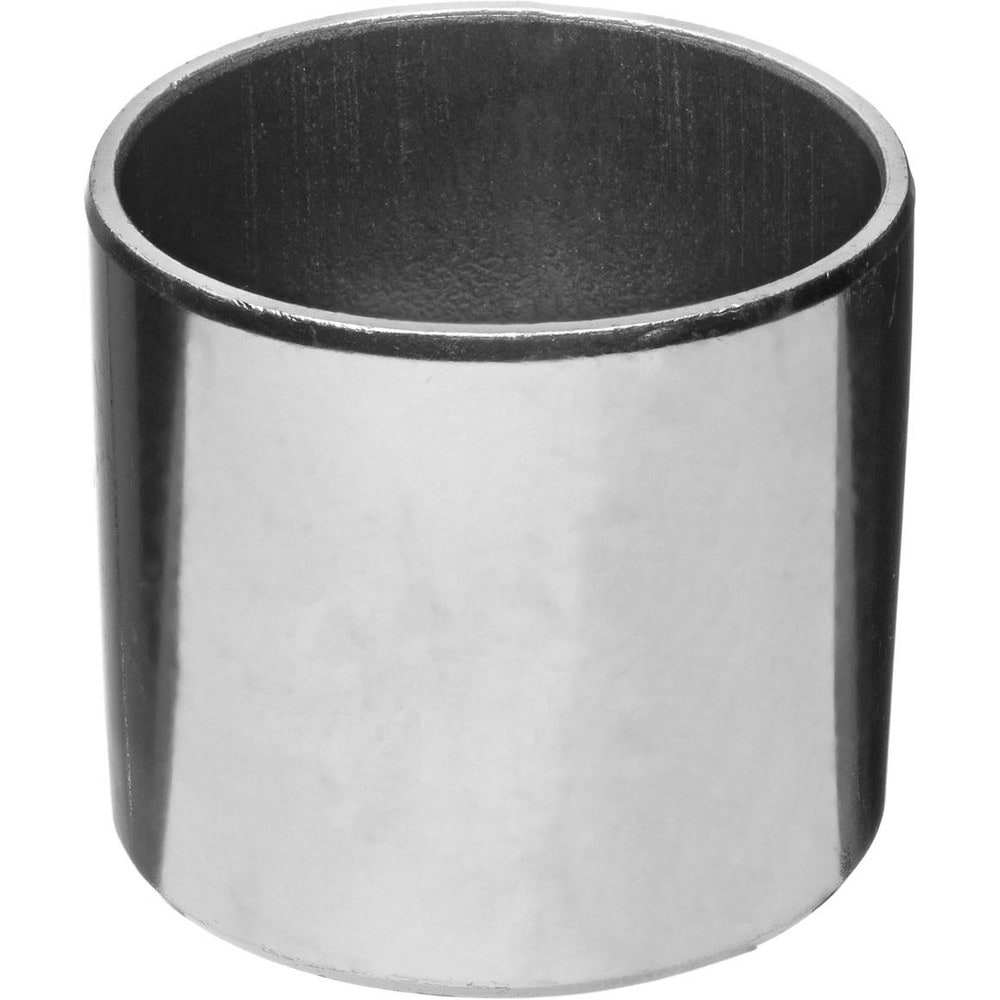

Sleeve Bearings; Bearing Type: Sleeve; Outside Diameter (Inch): 3-15/16; Outside Diameter (Decimal Inch - 4 Decimals): 3.9375; Inside Diameter (Inch): 3-47/64; Inside Diameter (Decimal Inch): 3.7344
Item #: 76827070
Brand: USA Industrials
Model #: ZUSAB-PB-284
Product Specifications
| Bearing Type | Sleeve |
| Outside Diameter (Inch) | 3-15/16 |
| Outside Diameter (Decimal Inch - 4 Decimals) | 3.9375 |
| Inside Diameter (Inch) | 3-47/64 |
| Inside Diameter (Decimal Inch) | 3.7344 |
| Material | Steel |
| Overall Length (Inch) | 3-15/16 |
| Overall Length (Decimal Inch) | 3.9375 |
| Static Load Capacity | 2649108.94 |
| Dynamic Load Capacity | 2923960.790 |
| Maximum Pressure X Velocity | 406 |
| Bore Type | Plain |
| Lubricant Type | PTFE |
| Temperature Range | -320 to 530 Deg F |
| Housing Bore Limits Maximum | 100.0350 |
| Housing Bore Limits Mininum | 100.0000 |
| Inside Diameter (mm) | 95.0000 |
| Overall Length (mm) | 100 |
| UNSPSC Code | 31171509 |
| Country of Origin | United Kingdom |
