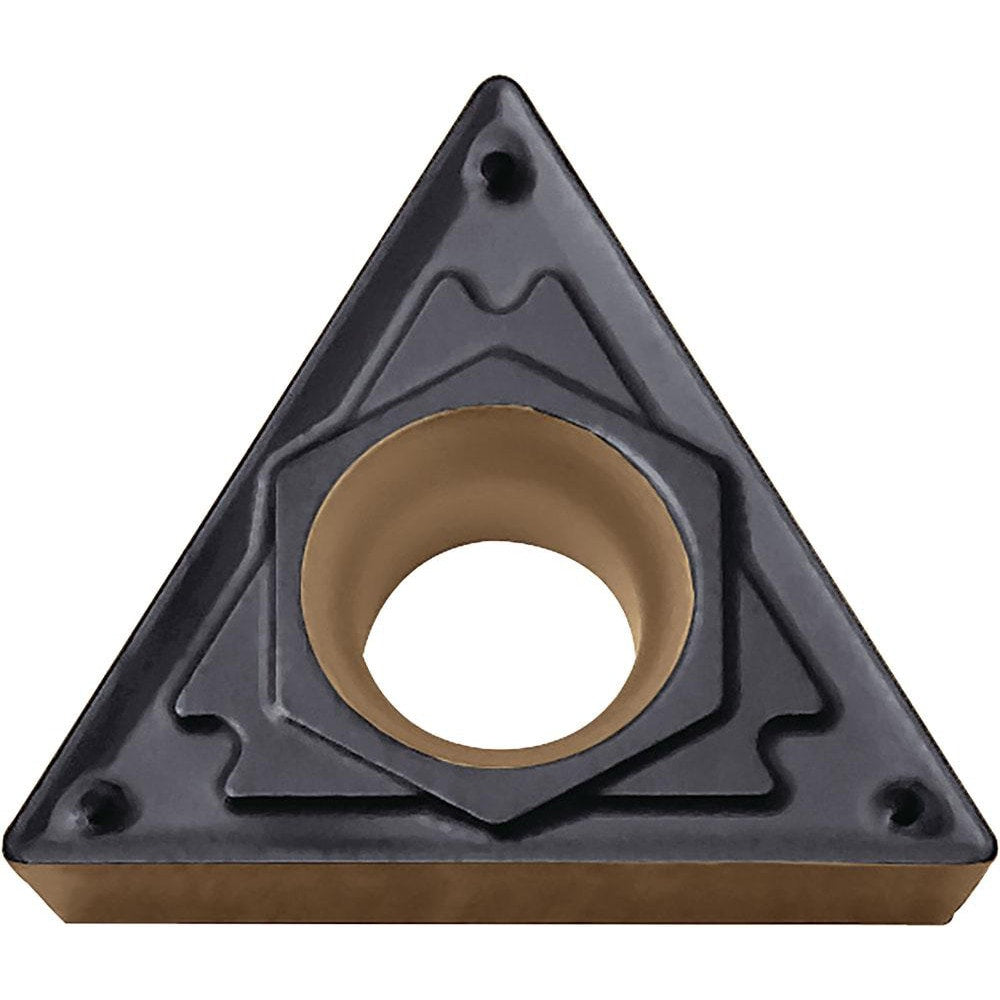

Turning Insert: TPMT2205HQ CA115P, Carbide
Item #: 04466751
Brand: Kyocera
Model #: TML00412
Product Specifications
| ANSI Insert Code | TPMT2205 |
| ISO Insert Code | TPMT110302 |
| Relief Angle | 11 |
| Insert Style | TPMT |
| Corner Radius (mm) | 0.20 |
| Corner Radius (Decimal Inch) | 0.0079 |
| Included Angle | 60 |
| Manufacturer Grade | CA115P |
| Coating/Finish | TiCN/Al2O3/TiN |
| Wiper Edge | No |
| Insert Hand | Neutral |
| Insert Thickness (Inch) | 1/8 |
| Insert Thickness | 3.18 |
| Insert Thickness (Decimal Inch) | 0.1252 |
| Series | ISO Insert |
| Inscribed Circle (Decimal Inch) | 0.2500 |
| Inscribed Circle (Inch) | 1/4 |
| Inscribed Circle (mm) | 6.35 |
| Insert Material | Carbide |
| Insert Shape | T - Triangle |
| Chip Breaker Operation | Medium Machining; Finishing |
| Grade Characteristics | Steel (P) - High Wear-Resistance to Moderate Wear-Resistance and Toughness |
| Side Clearance | Positive |
| Number Of Cutting Edges | 3 |
| Insert Shape Code | T |
| Hole Diameter (Decimal Inch) | 0.1299 |
| Hole Diameter (Mm) ( - 0 Decimals) | 3.30 |
| Insert Holding Method | Screw; Clamp |
| Clearance Code | P |
| Tolerance Code | M |
| Coating Process | CVD |
| Rake | Positive |
| Primary Workpiece Material | Alloy Steel; Carbon Steel |
| Primary Workpiece Material Code | P |
| Secondary Workpiece Material Code | None |
| Iso Code | TPMT110302HQ |
| Manufacturers Catalog Number | TPMT2205HQCA115P |
| Chip Breaker | HQ |
| Multi-Use Tool | Yes |
| Multi-Use Application | External Turning; Back Boring; Copying; Internal Facing; Boring |
| ANSI Size Code | 2205 |
| ISO Size Code | 110302 |
| UNSPSC Code | 23242107 |
| Insert Size Code | 2205 |
