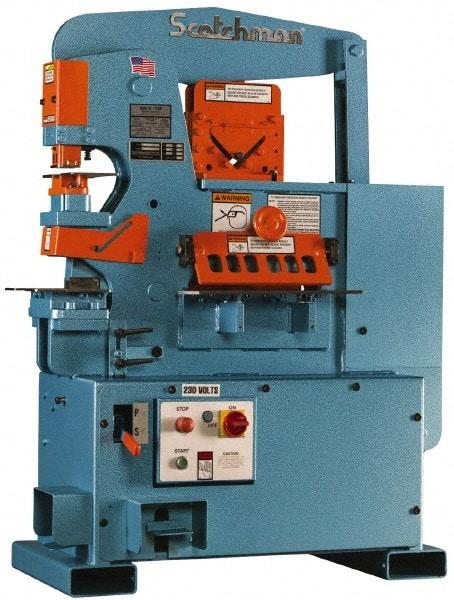

Scotchman - 6" Throat Depth, 50 Ton Punch Pressure, 1-1/4" in 1/2" & 13/16" in 3/4" Punch Capacity Ironworker - 3 hp, 3 Phase, 208/380/575 (Standard), 220 (Optional) & 230/460 (Standard) Volts, 47" Wide x 59" High x 29" Deep
Item #: 91228494
Brand: Scotchman
Model #: 50514-EC
Exact Tooling IR#: 04
Product Specifications | |
---|---|
Throat Depth (mm) | 152.40 |
Throat Depth (Inch) | 6 |
Punching Pressure (Ton) | 50.00 |
Punching Pressure (mt) | 45.00 |
Punching Capacity (Inch) | 1-1/4 in 1/2; 13/16 in 3/4 |
Pipe Notching Capacity in Schedule 40 ID (mm) | 19.00; 25.00; 32.00; 38.00; 50.00 |
Pipe Notching Capacity in Schedule 40 ID (Inch) | 3/4; 1; 1-1/4; 1-1/2; 2 |
Square/Rectangular Notching Capacity (mm) | 62 x 69 x 10; 62 x 75 x 8 |
Square/Rectangular Notching Capacity (Inch) | 2 x 1-3/4 x 1/4; 2-1/2 x 2-3/4 x 3/8; 2-1/2 x 3 x 5/16 |
90 V. Notching Capacity (mm) | 100 x 100 x 10 |
90 V. Notching Capacity (Inch) | 4 x 4 x 3/8; 6 x 6 x 1/8 |
Flat Bar Shear Length (mm) | 355.60 |
Flat Bar Shear Length (Inch) | 14 |
Flat Bar Shearing Capacity (mm) | 10 x 250; 12 x 200; 18 x 100; 6 x 350 |
Flat Bar Shearing Capacity (Inch) | 1/2 x 8; 1/4 x 14; 3/4 x 4; 3/8 x 10 |
45 Angle Shearing Capacity (mm) | 50 x 50 x 10 |
45 Angle Shearing Capacity (Inch) | 2 x 2 x 3/8 |
90 Angle Shearing Capacity (Inch) | 4 x 4 x 3/8 |
90 Angle Shearing Capacity (mm) | 100 x 100 x 10 |
Saber Blade Shearing Capacity (mm) | 10 x 300; 12 x 250 |
Saber Blade Shearing Capacity (Inch) | 1/2 x 10; 3/8 x 12 |
Square Rod Shearing Capacity (mm) | 6-19 |
Square Rod Shearing Capacity (Inch) | 1/4-3/4 |
Square Tube Shearing Capacity (mm) | 2.75; 12-25 |
Square Tube Shearing Capacity (Inch) | 1/2-1 |
Square Tube Shearing Capacity (Gauge) | 12 |
Pickett Tool Capacity (mm) | 1.60; 12.00; 19.00; 25.00 |
Pickett Tool Capacity (Inch) | 1/2; 3/4; 1 |
Pickett Tool Capacity (Gauge) | 16 |
Brake Capacity (Ton) | 25 (12" Brake); 30 (8" Brake) |
Brake Capacity (mt) | 23 (12" Brake); 27 (8" Brake) |
Speed (SPM) | 17 (Heavy Material); 40 (Light Material) |
Phase | 3 |
Horsepower (HP) | 3.00 |
Voltage | 208/380/575 (Standard); 220 (Optional); 230/460 (Standard) |
Hydraulic Pressure (bar) | 145.00 |
Hydraulic Pressure (psi) | 2100.00 |
Overall Width (Inch) | 47 |
Overall Width (cm) | 119.38 |
Overall Depth (Inch) | 29 |
Overall Depth (cm) | 73.66 |
Overall Height (Inch) | 59 |
Overall Height (cm) | 149.86 |
