Turning Insert: TPMT2.521PSS T9225, Carbide
Item #: 20858551
Brand: Tungaloy
Model #: 6781003

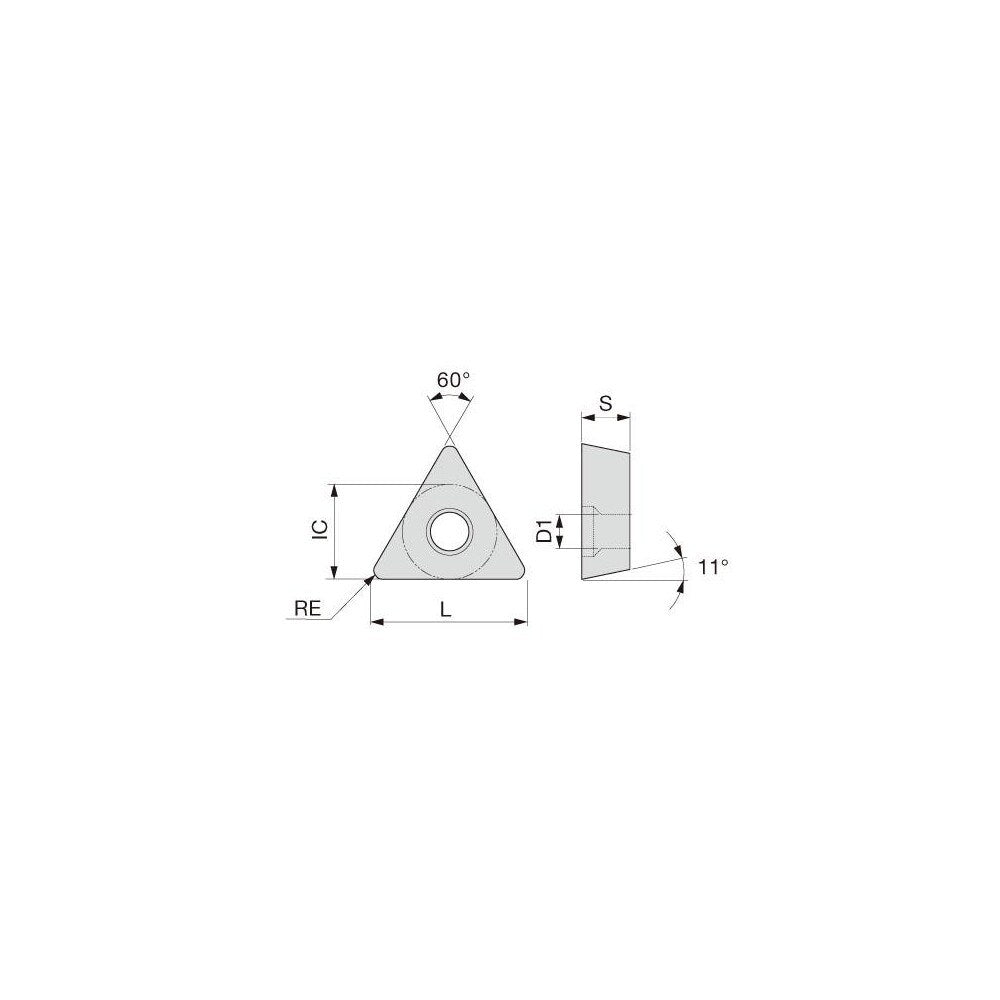

Product Specifications
| ANSI Insert Code | TPMT2.521 |
| ISO Insert Code | TPMT130304 |
| Relief Angle | 11 |
| Insert Style | TPMT |
| Corner Radius (Inch) | 1/64 |
| Corner Radius (Decimal Inch) | 0.0157 |
| Included Angle | 60 |
| Manufacturer Grade | T9225 |
| Coating/Finish | Titanium; Al2O3 |
| Wiper Edge | No |
| Insert Hand | Neutral |
| Insert Thickness (Inch) | 1/8 |
| Insert Thickness (Decimal Inch) | 0.1250 |
| Series | TPMT-PSS |
| Inscribed Circle (Decimal Inch) | 0.3125 |
| Inscribed Circle (Inch) | 5/16 |
| Insert Material | Carbide |
| Insert Shape | T - Triangle |
| Chip Breaker Operation | Finishing |
| Grade Characteristics | Cast Iron (K) - High Wear-Resistance to Moderate Wear-Resistance and Toughness; Stainless Steel (M) - High Wear-Resistance to Moderate Wear-Resistance and Toughness; Steel (P) - High Wear-Resistance to Moderate Wear-Resistance and Toughness |
| Side Clearance | Positive |
| Number Of Cutting Edges | 3 |
| Insert Shape Code | T |
| Hole Diameter (Decimal Inch) | 0.1340 |
| Maximum Depth of Cut (Decimal Inch) | 0.0787 |
| Insert Holding Method | Screw |
| Clearance Code | P |
| Tolerance Code | M |
| Coating Process | CVD |
| Length Range (Decimal Inch) | 0.5000 - 0.6000 |
| Rake | Positive |
| Insert Length (Decimal Inch) | 0.5430 |
| Primary Workpiece Material | Stainless Steel; Cast Iron; Steel |
| Primary Workpiece Material Code | P; K; M |
| Iso Code | TPMT130304-PSS T9225 |
| Standards | ISO; ANSI |
| Manufacturers Catalog Number | 6781003 |
| Material Grade | P25; P15 |
| Proprietary Coating Designation | Multilayer Coating |
| Coating Classification | CVD |
| Chip Breaker | PSS |
| Rake Angle | 10 |
| Cutting Edge Style | Honed; Chamfered |
| Industry Standard Number | TPMT 2.521 PSS |
| Width (Decimal Inch - 4 Decimals) | 0.5430 |
| Multi-Use Tool | Yes |
| Full Radius | No |
| Multi-Use Application | Facing; Turning; Boring |
| ANSI Size Code | 2.521 |
| ISO Size Code | 130304 |
| UNSPSC Code | 23242105 |
| Insert Size Code | 2.521 |
