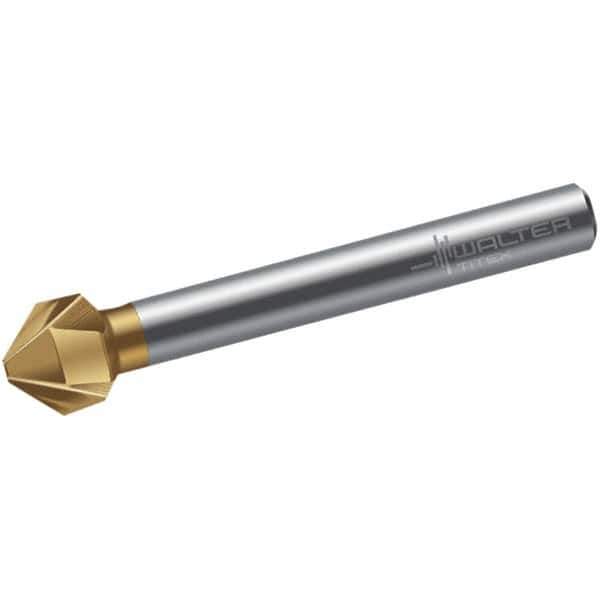

Walter-Titex - 23mm Head Diam, 10mm Shank Diam, 3 Flute 90° High Speed Steel Countersink - TiN Finish, 67mm OAL, Single End, Straight Shank, Right Hand Cut
Item #: 91034033
Brand: Walter-Titex
Model #: 5071423
Exact Tooling IR#: 04
Features and Benefits
High speed steel (HSS) provides good wear resistance and can be used in general purpose applications on both ferrous and nonferrous materials.
Titanium Nitride (TiN) is a multi-purpose coating which increases chip flow in softer materials. The heat and hardness resistance allows the tool to run at higher speeds than uncoated tools.
| Product Specifications | |
|---|---|
| Head Diameter (mm) | 23.00 |
| Head Diameter (Decimal Inch) | 0.9055 |
| Number of Flutes | 3 |
| Included Angle | 90 |
| Countersink Material | High Speed Steel |
| Countersink Finish/Coating | TiN |
| Minimum Cutting Diameter (mm) | 3.80 |
| Shank Diameter (mm) | 10.00 |
| Shank Diameter (Decimal Inch) | 0.3937 |
| Overall Length (mm) | 67 |
| Overall Length (Decimal Inch) | 2.6378 |
| Countersink Application | Countersinking |
| End Type | Single |
| Shank Type | Straight |
| Shank Material | High Speed Steel |
| Includes Pilot | No |
| Countersink Head Only | No |
| Cutting Direction | Right Hand |
| Material Application | Aluminum; Cast Steel; Cobalt Alloys; Fiber Reinforced Plastics; Graphite; Grey Cast Iron; Iron Alloys; Malleable Cast Iron; Nickel Alloy; Non-Ferrous Metals; Plastics; Spheroidal Cast Iron; Stainless Steel; Steel |
| Material Application2 | Titanium; Titanium Alloys; Vermicular Cast Iron |
