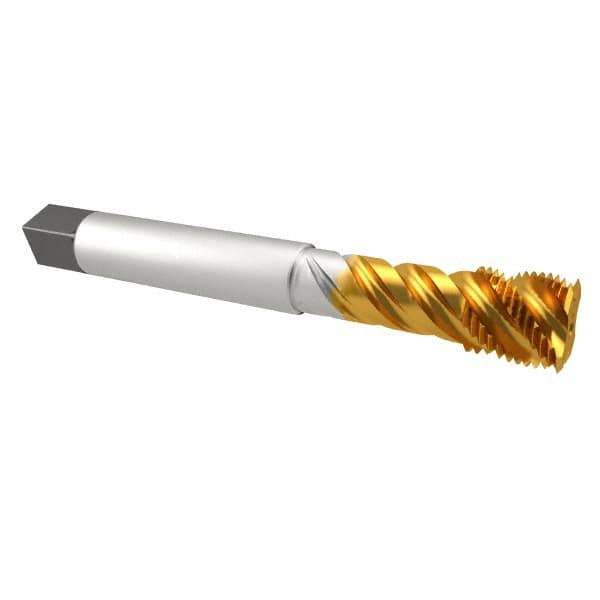

Emuge - 9/16-18 UNF 5 Flute 2B Bottoming Spiral Flute Tap - Cobalt, TiN Finish, 3.937" OAL, Right Hand Flute, Right Hand Thread, Series Enorm Z
Item #: 90404880
Brand: Emuge
Model #: CU513700.5048
Exact Tooling IR#: 04
Features and Benefits
Bottoming chamfers are used for threading blind holes. They have 1 to 2 threads.
Cobalt is harder than high speed steel and provides better wear resistance. It is commonly used on high tensile alloys.
Titanium Nitride (TiN) is a multi-purpose coating which increases chip flow in softer materials. The heat and hardness resistance allows the tool to run at higher speeds than uncoated tools.
Fast Spiral Flutes with 40-53 degree angles are suitable for ductile materials like aluminum and copper; medium to high carbon steels and free machining stainless steels.
| Product Specifications | |
|---|---|
| Thread Size (Inch) | 9/16-18 |
| Chamfer | Bottoming |
| Class of Fit | 2B |
| Number of Flutes | 5 |
| Material | Cobalt |
| Finish/Coating | TiN |
| Thread Direction | Right Hand |
| Flute Direction | Right Hand |
| Through Coolant | NonThrough Coolant |
| Overall Length (Decimal Inch) | 3.9370 |
| Helix Angle | 45 |
| Thread Standard | UNF |
| Oversize | No |
| Thread Length (Decimal Inch) | 0.5910 |
| Flute Type | Fast Spiral |
| Series/List | Enorm Z |
| Shank Diameter (Decimal Inch) | 0.4290 |
| Material Application | Acid Resistant Steel; Aluminum Alloys; Free Cutting Steel; Heat Treated Steel; Heat-Treated Materials; High Alloy Steel Castings; Nickel; Nickel Alloys; Stainless Steel; Steel Castings; Structural Steel; Titanium Alloys; Tool Steel |
