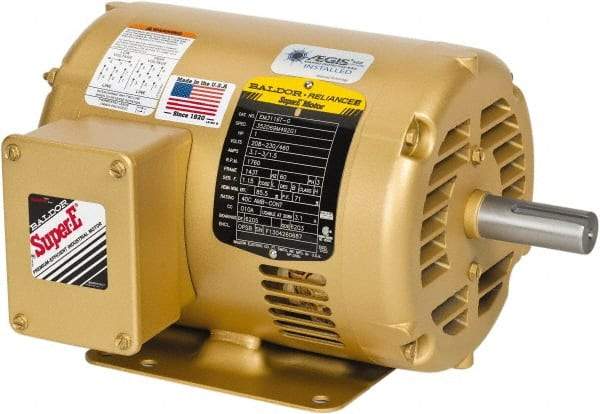

Baldor - 5 hp, ODP Enclosure, No Thermal Protection, 1,800 RPM, 208-230/460 Volt, 60 Hz, Three Phase Motor - Size 184T Frame, Foot Mount, 1 Speed, Ball Bearings, 6.6 Full Load Amps, F Class Insulation, Reversible
Item #: 89363436
Brand: Baldor
Model #: EM3218T
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Motor Type | Three Phase |
| Type of Enclosure | ODP |
| Horsepower | 5 |
| Thermal Protection Rating | None |
| Name Plate RPMs | 1800 |
| Voltage | 208-230/460 |
| Frequency Hz | 60 |
| Frame Size | 184T |
| Mount Type | Foot Mount |
| Number of Speeds | 1 |
| Bearing Type | Ball |
| Applications | General Purpose |
| Full Load Amperage | 6.6 |
| Insulation Class | F |
| Frame Material | Rolled Steel |
| Overall Length (Decimal Inch) | 16.5000 |
| Full Load Efficiency Rating | 89.5 |
| Service Factor Rating | 1.15 |
| Motor Rotation | Reversible |
| Phase | Three |
| PSC Code | 6105 |
