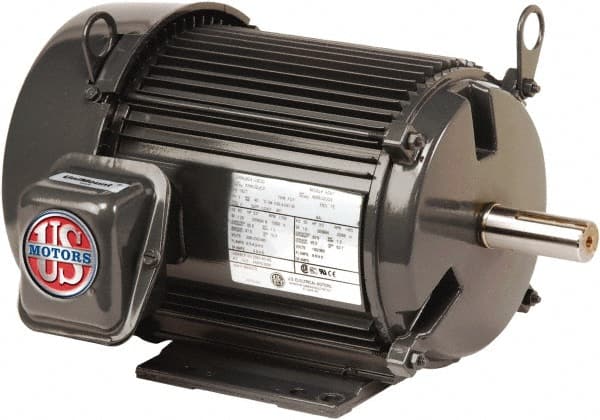

20 hp, TEFC Enclosure, No Thermal Protection, 3550, 2930 RPM, 208-230/460 & 190/380 Volt, 60/50 Hz, Three Phase Premium Efficient Motor Size 256 Frame, C-Face with Base Mount, 1 Speed, Double Shielded Ball Bearings, 53-46/23 Full Load Amps, F Class Insula

20 hp, TEFC Enclosure, No Thermal Protection, 3550, 2930 RPM, 208-230/460 & 190/380 Volt, 60/50 Hz, Three Phase Premium Efficient Motor Size 256 Frame, C-Face with Base Mount, 1 Speed, Double Shielded Ball Bearings, 53-46/23 Full Load Amps, F Class Insula


Item #: 89228407
Brand: US Motors
Model #: U20P1DC

Product Specifications

Motor Type Three Phase Premium Efficient
Type of Enclosure TEFC
Horsepower 20 hp old; 20 h; 20 W; 20 hp; 20
Thermal Protection Rating None
Enclosure Style TEFC
Horse Power 20 hp old; 20 h; 20 W; 20 hp
Name Plate RPMs 3550, 2930
Voltage 208-230/460 & 190/380
Frequency Hz 60/50 Hz; 60/50
Frame Size 256
Mount Type C-Face w/Base
Number of Speeds 1
Bearing Type Double Shielded Ball
Application General Equipment
Full Load Amperage 53-46/23
Service Factor Rating 1.0
Applications General Equipment
Insulation Class F
Frame Material Aluminum
Service Factor Rating 1
PSC Code 6105
$2,897.38
