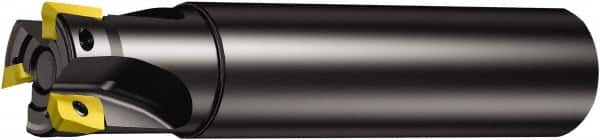

32mm Cut Diam, 15.7mm Max Depth, 32mm Shank Diam, Cylindrical Shank, 250mm OAL, Indexable Square-Shoulder End Mill R390-032A32L-17L Toolholder, Uses Multiple Insert Styles, 90° Lead Angle, Through Coolant, Series CoroMill 390
Item #: 88466784
Brand: Sandvik Coromant
Model #: 5745513
Product Specifications
| Maximum Cutting Diameter (Decimal Inch) | 1.2598 |
| Maximum Cutting Diameter (mm) | 32.00 |
| Maximum Depth of Cut (mm) | 15.70 |
| Maximum Depth of Cut (Decimal Inch) | 0.6181 |
| Cutter Style | R390-032A32L-17L |
| Shank Type | Cylindrical |
| Shank Diameter (Decimal Inch) | 1.2598 |
| Shank Diameter (mm) | 32.00 |
| Insert Holding Method | Screw |
| Overall Length (mm) | 250.00 |
| Overall Length (Decimal Inch) | 9.8425 |
| Tool Material | Steel |
| Series | CoroMill 390 |
| Lead Angle | 90 |
| Shank Length (Decimal Inch) | 7.2835 |
| Head Length (Decimal Inch) | 2.5591 |
| Maximum RPM | 7600 |
| Insert Compatibility | R390-17 04 08M-PL; R390-17 04 08E-PL; R390-17 04 04M-PM |
| ISO Number | R390-032A32L-17L |
| Number Of Flutes | 2 |
| Number Of Cutter Inserts | 2 |
| Coolant Through | Yes |
