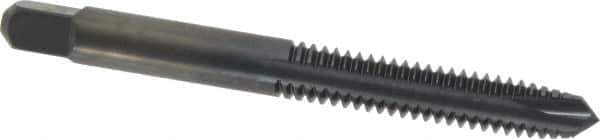

Kennametal - 1/4-20 UNC, 3 Flute, Nitride/Oxide Finish, High Speed Steel Spiral Point Tap - Plug Chamfer, Right Hand Thread, 2-1/2" OAL, 1" Thread Length, 0.255" Shank Diam, 3B Class of Fit
Item #: 88409008
Brand: Kennametal
Model #: 4132078
Exact Tooling IR#: 04
Features and Benefits
Plug chamfers are the most commonly used chamfer and are designed for efficiently threading through and blind holes. They have 3 to 5 threads.
Nitride/oxide is harder than oxide and is used to prevent galling, welding and loading. It is commonly used on low carbon steels, stainless steels and nonferrous metals.
High Speed Steel (HSS) provides good wear resistance and can be used in general purpose applications for both ferrous and nonferrous materials.
| Product Specifications | |
|---|---|
| Thread Size (Inch) | 1/4-20 |
| Number of Flutes | 3 |
| Chamfer | Plug |
| Class of Fit | 3B |
| Thread Limit | H3 |
| Finish/Coating | Nitride/Oxide |
| Material | High Speed Steel |
| Through Coolant | NonThrough Coolant |
| Thread Direction | Right Hand |
| Overall Length (Decimal Inch) | 2.5000 |
| Overall Length (Inch) | 2-1/2 |
| Oversize | No |
| Thread Standard | UNC |
| Thread Length (Decimal Inch) | 1.0000 |
| Shank Diameter (Decimal Inch) | 0.2550 |
| Material Application | Cast Iron; Hardened Steel; Stainless Steel; Steel |
