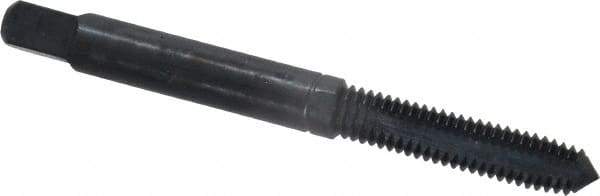

Balax - 4 Flutes, 0.7900 Inch Thread Length, M6x1.00 Metric Coarse, Nitride Oxide Coating, High Speed Steel, Cleanout Tap - 2-1/2 Inch Overall Length, 5/16 Inch Square Length, 0.191 Inch Square Size, 0.255 Inch Shank Diameter, Modified Bottoming
Item #: 88058102
Brand: Balax
Model #: 54600-006
Exact Tooling IR#: 04
Features and Benefits
Modified bottoming chamfers are similar to bottoming chamfers, but they are longer and have more teeth. They are used for threading to the bottom of blind holes and have 2 to 2-1/2 threads.
Nitride is a thin, hard-shell coating that supports surface hardness of the tool. It is commonly used where abrasive or wearing conditions exist.
High Speed Steel (HSS) provides good wear-resistance and can be used in general purpose applications for both ferrous and non-ferrous materials.
Product Specifications | |
---|---|
Thread Size (mm) | M6x1.00 |
Number of Flutes | 4 |
Chamfer | Modified Bottoming |
Finish/Coating | Nitride/Oxide |
Material | High Speed Steel |
Overall Length (Inch) | 2-1/2 |
Thread Standard | Metric Coarse |
Thread Length (Decimal Inch) | 0.7900 |
Shank Diameter (Decimal Inch) | 0.2550 |
Square Length (Inch) | 5/16 |
Square Size (Decimal Inch) | 0.1910 |
Series/List | BX450 |
