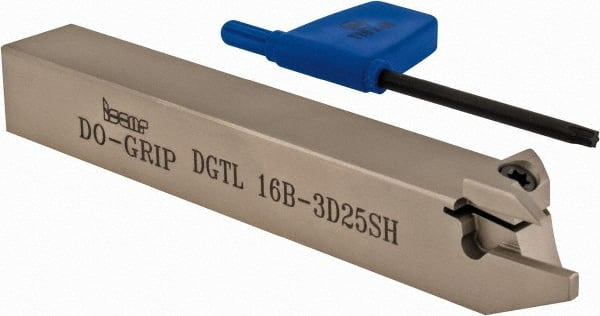

0.118″ to 0.125″ Width, External Left Hand Indexable Grooving/Cutoff Toolholder 4.724″ OAL, 0.63″ x 0.63″ Shank, Uses DG.. Inserts, DGT Toolholder, Series Do-Grip
Item #: 87973640
Brand: Iscar
Model #: 2301536
Product Specifications
| Internal or External | External |
| Cutting Direction | Left Hand |
| Hand of Holder | Left Hand |
| Maximum Groove Width (Decimal Inch) | 0.1250 |
| Minimum Groove Width (Decimal Inch) | 0.1180 |
| Toolholder Style | DGT |
| Insert Holding Method | Clamp |
| Compatible Insert Size Code | DGR/L-J/JS; DGN/DGNM-J/JS/JT |
| Insert Compatibility | DG.. |
| Shank Height (Decimal Inch) | 0.6300 |
| Shank Length (Decimal Inch) | 3.9540 |
| Shank Width/Diameter (Decimal Inch) | 0.6300 |
| Series | Do-Grip |
| Overall Length (Decimal Inch) | 4.7240 |
| Cutting Tool Application | Grooving; Cut-Off |
| Back of Bar to Cutting Edge (Decimal Inch) | 0.5800 |
| Head Length (Decimal Inch) | 0.7700 |
| Standards | ISO 13399 |
| Manufacturers Catalog Number | DGTL 16B-3D25SH |
| Complete Insert Compatibility | DGL 3102J-15D; DGL 3102C-6D; DGL 2202C-6D; DGL 4003C-4D; DGL 1402J-8D; DGL 2200JS-15D; DGL 3100JS-15D; DGL 1400JS-15D; DGL 2200JS-6D; DGL 3100JS-6D; DGL 4003J-4D; DGL 5003J-4D; DGL 5003C-4D; DGL 3102J-6D; DGL 3102C-15D; DGL 2202J-6D; DGL 1001J-8D; DGL 6303C-4D |
| Insert Seat Size | 0.1 |
| Coolant Through | No |
