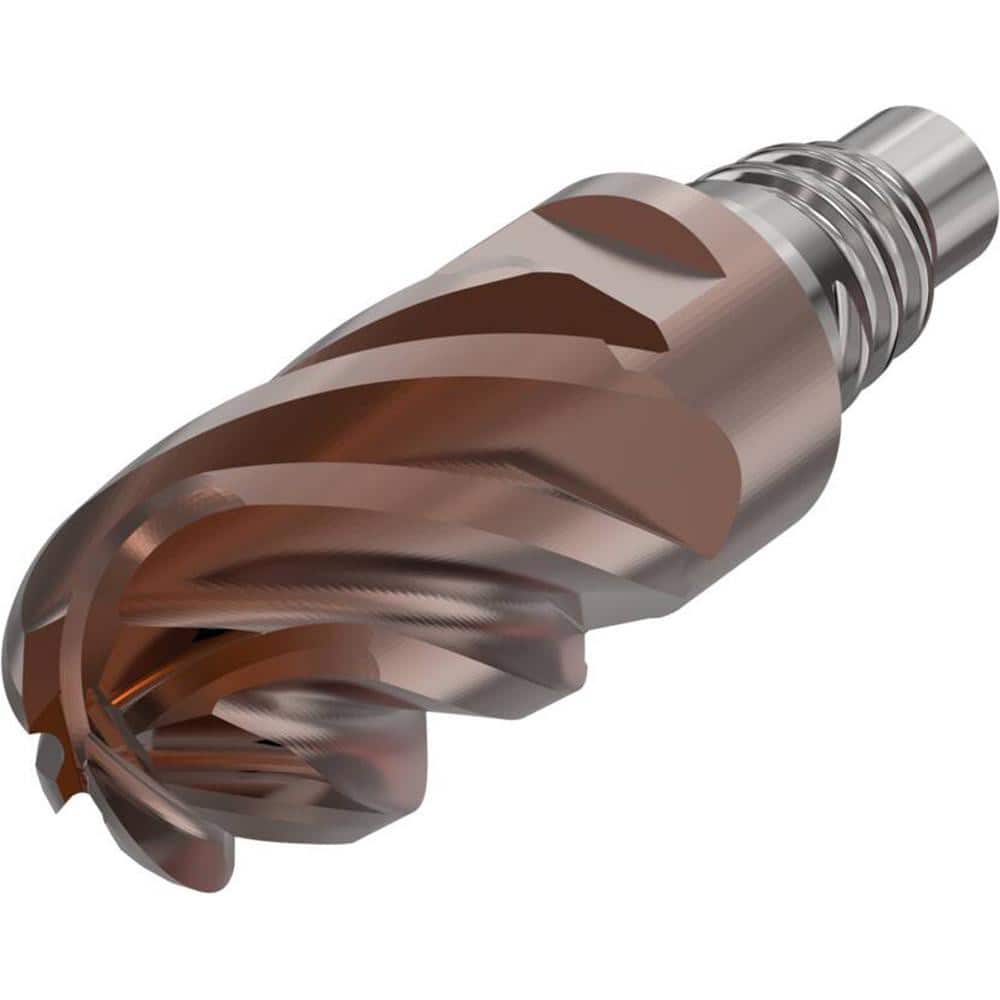

Ball End Mill Heads; Mill Diameter (mm): 16.00; Mill Diameter (Decimal Inch): 0.6299; Number of Flutes: 6; Length of Cut (mm): 16.0000; Connection Type: E16; Overall Length (mm): 51.1000; Material: Solid Carbide; Finish/Coating: HXT; Cutting Direction: Ri
Item #: 87755054
Brand: Seco
Model #: 10138224
Product Specifications
| Mill Diameter (mm) | 16.00 |
| Mill Diameter (Decimal Inch) | 0.6299 |
| Number of Flutes | 6 |
| Length of Cut (mm) | 16.0000 |
| Connection Type | E16 |
| Overall Length (mm) | 51.1000 |
| Material | Solid Carbide |
| Finish/Coating | HXT |
| Cutting Direction | Right Hand |
| Flute Direction | Right Hand |
| Flute Type | Helical |
| Helix Angle | 38 |
| Helix Style | Medium |
| Maximum Helix Angle | 38 |
| Minimum Helix Angle | 38 |
| Nose Radius (Decimal Inch) | 0.3150 |
| Series/List | XSB720 |
| Undercutting | No |
