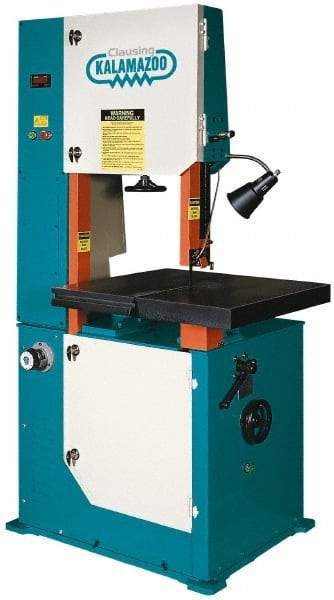

Clausing - 20 Inch Throat Capacity, Variable Speed Pulley Vertical Bandsaw - 50 to 5200 SFPM, 3 HP, Three Phase
Item #: 86226065
Brand: Clausing
Model #: V2012F
Exact Tooling IR#: 04
Features and Benefits
Variable speed pulleys are driven by a V-shaped belt system and a variable speed assembly that regulates an infinite speed range change by the turn of a dial.
Three-phase refers to three individual lines (coils) that connect to and run voltage through the motor. Each line alternates in a sequence as it reaches its voltage peak. They provide a more stable flow of voltage and more horsepower to the equipment.
| Product Specifications | |
|---|---|
| Drive Type | Variable Speed Pulley |
| Throat Capacity (mm) | 508.00 |
| Throat Capacity (Inch) | 20 |
| Height Capacity (Inch) | 12 |
| Height Capacity (mm) | 304.80 |
| Phase | 3 |
| Blade Width (mm) | 3.18 to 25.40 |
| Blade Width (Inch) | 1/8 to 1 |
| Blade Speeds (SFPM) | 50 to 5200 |
| Blade Length (mm) | 4038.60 to 4114.80 |
| Blade Length (Inch) | 159 to 162 |
| Table Length (mm) | 736.60 |
| Table Length (Inch) | 29 |
| Table Width (mm) | 679.45 |
| Table Width (Inch) | 26-3/4 |
| Table Tilt Right (Degrees) | 45.00 |
| Number of Slots | 4 |
| Horsepower (HP) | 3.00 |
| Voltage | 230/460 |
| Overall Height (mm) | 2057.40 |
| Overall Height (Inch) | 81 |
