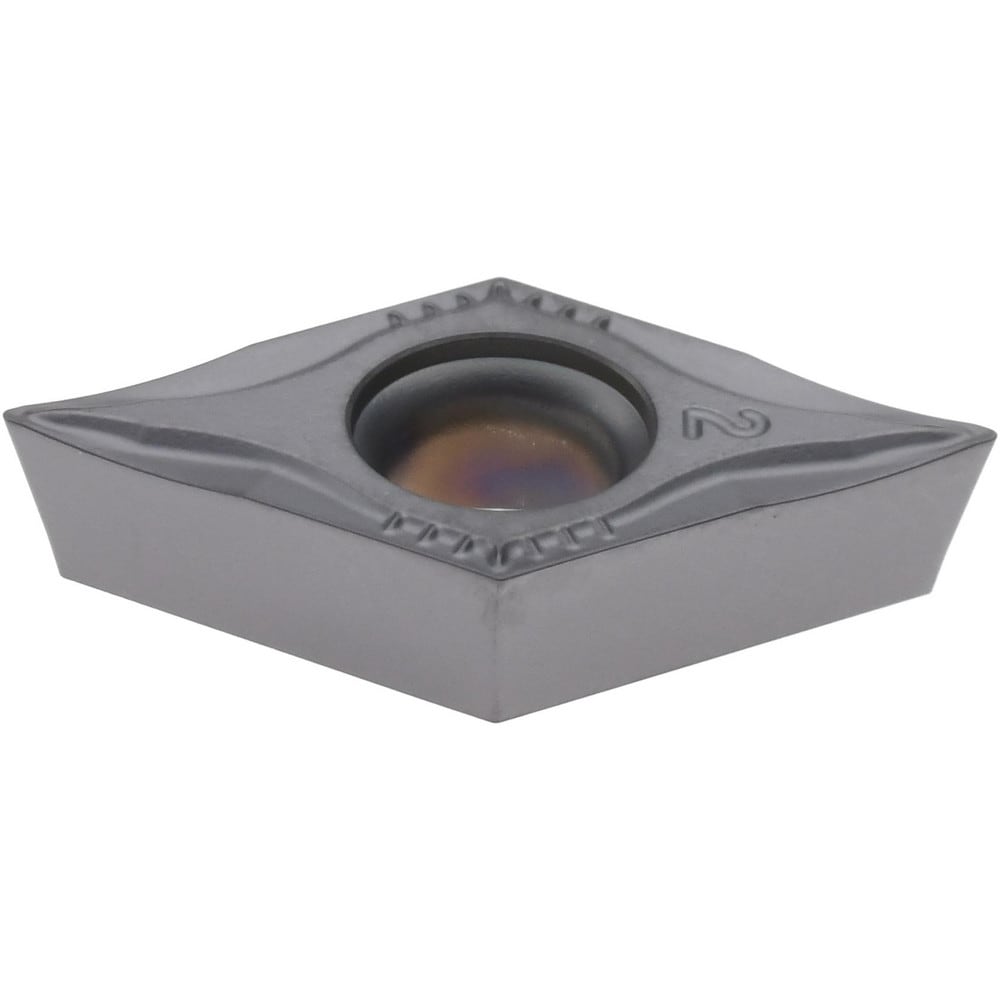

Turning Insert: DCMT070202WSF ACP25M, Carbide
Item #: 75536615
Brand: Accupro
Model #: 75536615
Product Specifications
| ANSI Insert Code | DCMT21.50.5 |
| ISO Insert Code | DCMT070202 |
| Relief Angle | 7 |
| Insert Style | DCMT |
| Corner Radius (mm) | 0.20 |
| Corner Radius (Decimal Inch) | 0.0079 |
| Included Angle | 55 |
| Manufacturer Grade | ACP25M |
| Coating/Finish | CVD |
| Insert Hand | Neutral |
| Insert Thickness | 2.38 |
| Insert Thickness (Decimal Inch) | 0.0937 |
| Series | CI |
| Inscribed Circle (Decimal Inch) | 0.2500 |
| Inscribed Circle (mm) | 6.35 |
| Insert Material | Carbide |
| Insert Shape | D - Diamond (Rhombic) 55-Deg |
| Grade Characteristics | Cast Iron (K) - High Wear-Resistance to Moderate Wear-Resistance and Toughness; Steel (P) - High Wear-Resistance to High Toughness; Stainless Steel (M) - High Wear-Resistance to Moderate Wear-Resistance and Toughness |
| Side Clearance | Positive |
| Number Of Cutting Edges | 2 |
| Insert Shape Code | D |
| Hole Diameter (Decimal Inch) | 0.1102 |
| Maximum Depth of Cut (mm) | 1.80 |
| Maximum Depth of Cut (Decimal Inch) | 0.0709 |
| Insert Holding Method | Screw |
| Clearance Code | C |
| Tolerance Code | M |
| Primary Workpiece Material Code | P; K; M |
| Standards | ANSI Code: DCMT21.505 |
| Chip Breaker | WSF+ |
| ANSI Size Code | 21.50.5 |
| ISO Size Code | 070202 |
| UNSPSC Code | 23242105 |
| Insert Size Code | 07 |
| Country of Origin | VARIOUS |
