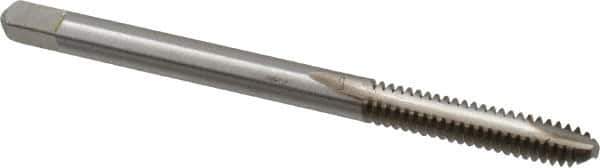

Kennametal - #6-32 UNC, 2 Flute, Bright Finish, High Speed Steel Spiral Point Tap - Bottoming Chamfer, Right Hand Thread, 2" OAL, 11/16" Thread Length, 0.141" Shank Diam, 2B Class of Fit, Series 5302
Item #: 84812650
Brand: Kennametal
Model #: 1541555
Exact Tooling IR#: 04
Features and Benefits
Bottoming chamfers are used for threading blind holes. They have 1 to 2 threads.
Bright provides a smooth, polished finish on the tool. It increases chip flow in softer materials such as aluminum, wood and plastic.
High Speed Steel (HSS) provides good wear resistance and can be used in general purpose applications for both ferrous and nonferrous materials.
| Product Specifications | |
|---|---|
| Thread Size (Inch) | #6-32 |
| Number of Flutes | 2 |
| Chamfer | Bottoming |
| Class of Fit | 2B |
| Thread Limit | H3 |
| Finish/Coating | Bright |
| Material | High Speed Steel |
| Through Coolant | NonThrough Coolant |
| Thread Direction | Right Hand |
| Overall Length (Decimal Inch) | 2.0000 |
| Overall Length (Inch) | 2 |
| Oversize | No |
| Thread Standard | UNC |
| Thread Length (Decimal Inch) | 0.6880 |
| Series/List | 5302 |
| Shank Diameter (Decimal Inch) | 0.1410 |
| Material Application | Cast Iron; Non-Ferrous Metals |
