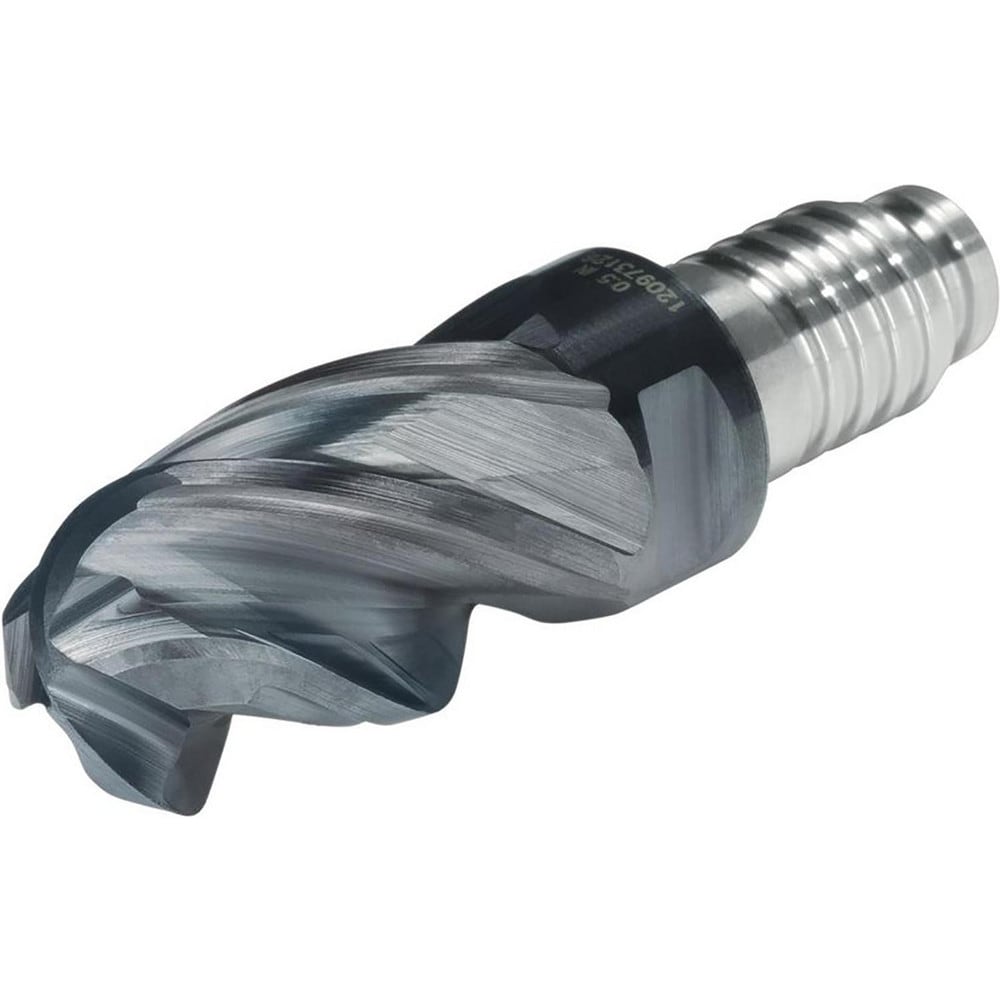

Ball End Mill Heads; Mill Diameter (mm): 19.05; Mill Diameter (Decimal Inch): 0.7500; Length of Cut (mm): 28.5800; Length of Cut (Inch): 1-1/8; Length Of Cut (Decimal Inch - 4 Decimals): 1.1250; Connection Type: Duo-Lock 20; Overall Length (Decimal Inch):
Item #: 84772854
Brand: Kennametal
Model #: 7136716
Product Specifications
| Mill Diameter (mm) | 19.05 |
| Mill Diameter (Decimal Inch) | 0.7500 |
| Length of Cut (mm) | 28.5800 |
| Length of Cut (Inch) | 1-1/8 |
| Length Of Cut (Decimal Inch - 4 Decimals) | 1.1250 |
| Connection Type | Duo-Lock 20 |
| Overall Length (Decimal Inch) | 2.6299 |
| Overall Length (mm) | 66.8000 |
| Material | Carbide |
| Cutting Direction | Right Hand |
| Flute Direction | Right Hand |
| Flute Type | Variable; Helical Flute |
| Helix Angle | 36 |
| Helix Style | Variable |
| Material Grade | Carbide |
| Maximum Helix Angle | 45 |
| Nose Radius (Decimal Inch) | 0.3750 |
| Series/List | Duo-Lock Harvi I TE |
| Undercutting | No |
| Number Of Flutes | 4 |
| Mill Diameter (Fractional Inch) | 3/4 |
| Finish Coating | AlTiN |
| UNSPSC Code | 27112803 |
| Country of Origin | Israel |
