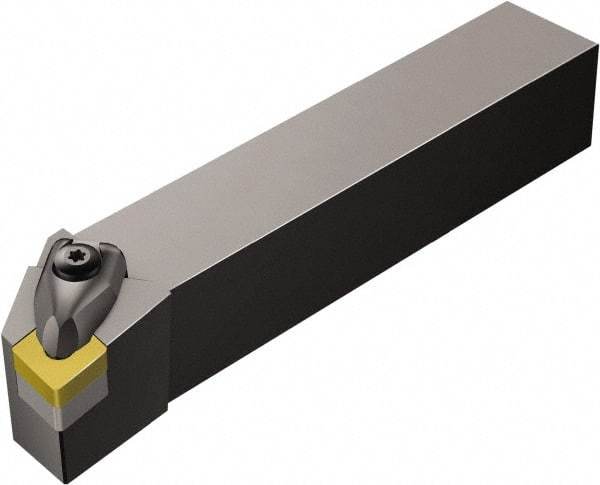

Sandvik Coromant - DCLNR, Left Hand Cut, -5° Lead Angle, 1-1/4" Shank Height x 1-1/4" Shank Width, Negative Rake Indexable Turning Toolholder - 6" OAL, CNMG 543 Insert Compatibility, Series T-Max P
Item #: 84451160
Brand: Sandvik Coromant
Model #: 5730551
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Hand of Holder | Left Hand |
| Toolholder Style | DCLNR |
| Rake | Negative |
| Rake Angle | -6 |
| Series | T-Max P |
| Lead Angle | -5 |
| Shank Width (Inch) | 1-1/4 |
| Shank Width (mm) | 31.75 |
| Shank Width (Decimal Inch) | 1.2500 |
| Shank Height (Inch) | 1-1/4 |
| Shank Height (mm) | 31.75 |
| Shank Height (Decimal Inch) | 1.2500 |
| Overall Length (Inch) | 6 |
| Overall Length (mm) | 152.40 |
| Overall Length (Decimal Inch) | 6.0000 |
| Insert Compatibility | CNMG 543 |
| Multi-Use Tool | Yes |
| Multi-Use Application | Profiling; Facing |
| Insert Holding Method | Wedge |
| Back of Bar to Cutting Edge (mm) | 152.40 |
| Back of Bar to Cutting Edge (Inch) | 6 |
| Back of Bar to Cutting Edge (Decimal Inch) | 6.0000 |
| Head Length (mm) | 39.12 |
| Head Length (Decimal Inch) | 1.5400 |
| Insert Inscribed Circle (Inch) | 5/8 |
| Insert Inscribed Circle (Decimal Inch) | 0.6250 |
| Insert Width (Inch) | 5/8 |
| Insert Width (Decimal Inch) | 0.6250 |
| Toolholder Material | Steel |
