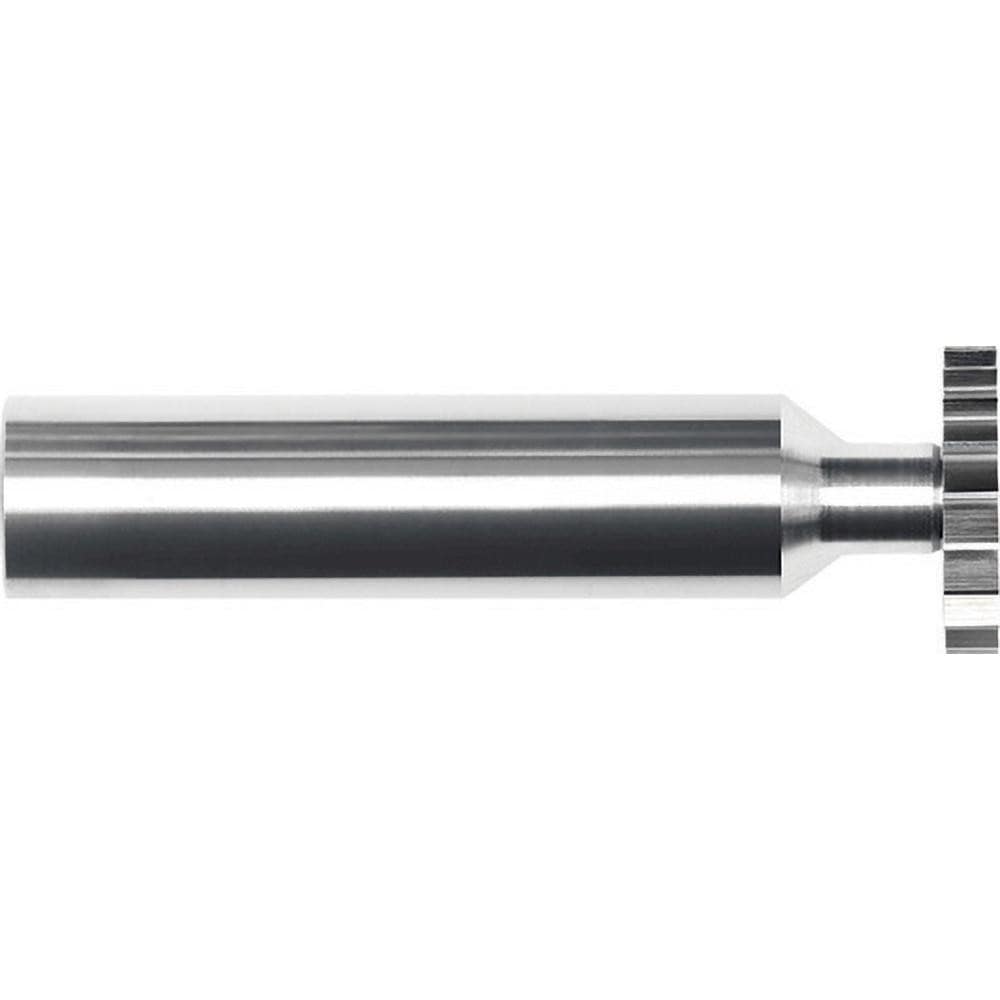

Woodruff Keyseat Cutter: 1" Cut Dia, 1/16" Cut Width, 1/2" Shank Dia, Straight Tooth

Woodruff Keyseat Cutter: 1" Cut Dia, 1/16" Cut Width, 1/2" Shank Dia, Straight Tooth


Item #: 86751070
Brand: Internal Tool
Model #: 107-1190-C

Product Specifications

Connection Type Shank
Cutter Material Solid Carbide
Cutter Diameter (Inch) 1
Cutter Diameter (Decimal Inch) 1.0000
Tooth Configuration Straight
Cutting Width (Inch) 1/16
Cutting Width (Decimal Inch) 0.0625
Weldon Flat No
Neck Diameter (Decimal Inch) 0.2800
Neck Length (Decimal Inch) 0.2500
Shank Diameter (Inch) 1/2
Shank Diameter (Decimal Inch) 0.5000
Overall Length (Inch) 2-3/4
Overall Length (Decimal Inch) 2.7500
Primary Workpiece Material Non-Ferrous Metal; Stainless Steel; Cast Iron; Superalloys & Titanium; Steel
Primary Workpiece Material Code P; S; K; M; N
Cutter Material Grade Micrograin
Series 107
Coating/Finish AlTiN
Number Of Teeth 24
UNSPSC Code 23241631
Country of Origin UNITED STATES
$168.46

2% Off All Online Orders
Use Code: 2%OFF

Best Price Guarantee - Email Us A Better Published Price and We'll Beat It
