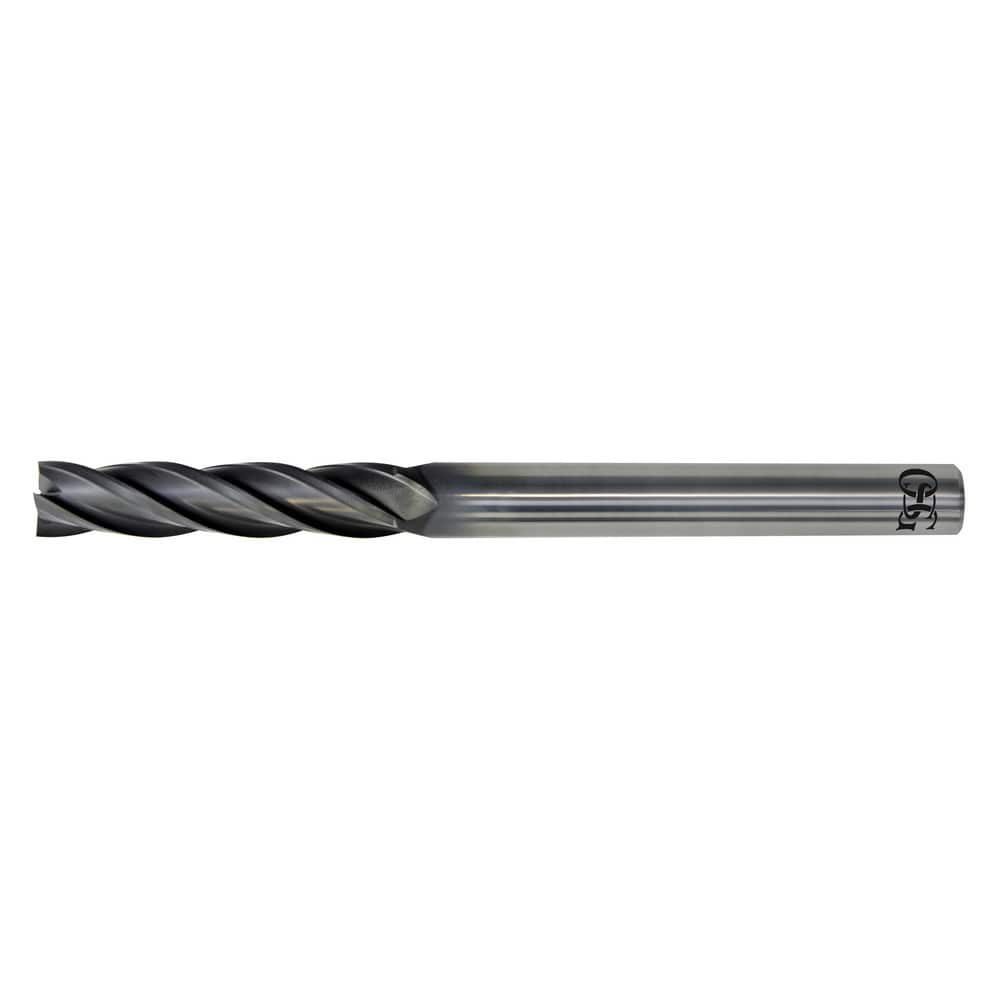

![1/16″ x 5/16″ 4FL EXOCARB DG-EML long neck corner radius carbide end mill engineered to achieve high-efficiency and high precision milling in high-hardness steels.](http://exactindustrialsupply.com/cdn/shop/products/8284473-21_ca85ef45-6931-41b4-ac53-7445a7fcce61_1024x1024.jpg?v=1675184344)
1/16″ x 5/16″ 4FL EXOCARB DG-EML long neck corner radius carbide end mill engineered to achieve high-efficiency and high precision milling in high-hardness steels.
Item #: 82844796
Brand: OSG
Model #: 74400325
Product Specifications
Mill Diameter (Inch) | 1/16 |
Mill Diameter (Decimal Inch) | 0.0625 |
Number Of Flutes | 4 |
Length of Cut (Inch) | 5/16 |
End Mill Material | Carbide |
End Type | Single; Square |
Centercutting | Yes |
Cutting Direction | Right Hand |
Shank Diameter (Inch) | 1/8 |
Finish/Coating | Diamond |
Overall Length (Inch) | 2-1/2 |
Helix Angle | 30 |
Chipbreaker | No |
Variable Helix | No |
Variable Index | No |
Extended Reach | No |
Shank Type | Straight-Cylindrical |
Material Grade | Ultra-Fine Micrograin |
Flute Direction | Right Hand |
Flute Type | Spiral |
Helix Style | Medium |
Shank Diameter Tolerance | h4 |
Length Type | Long |
Through Coolant | No |
Series | 7440 |
