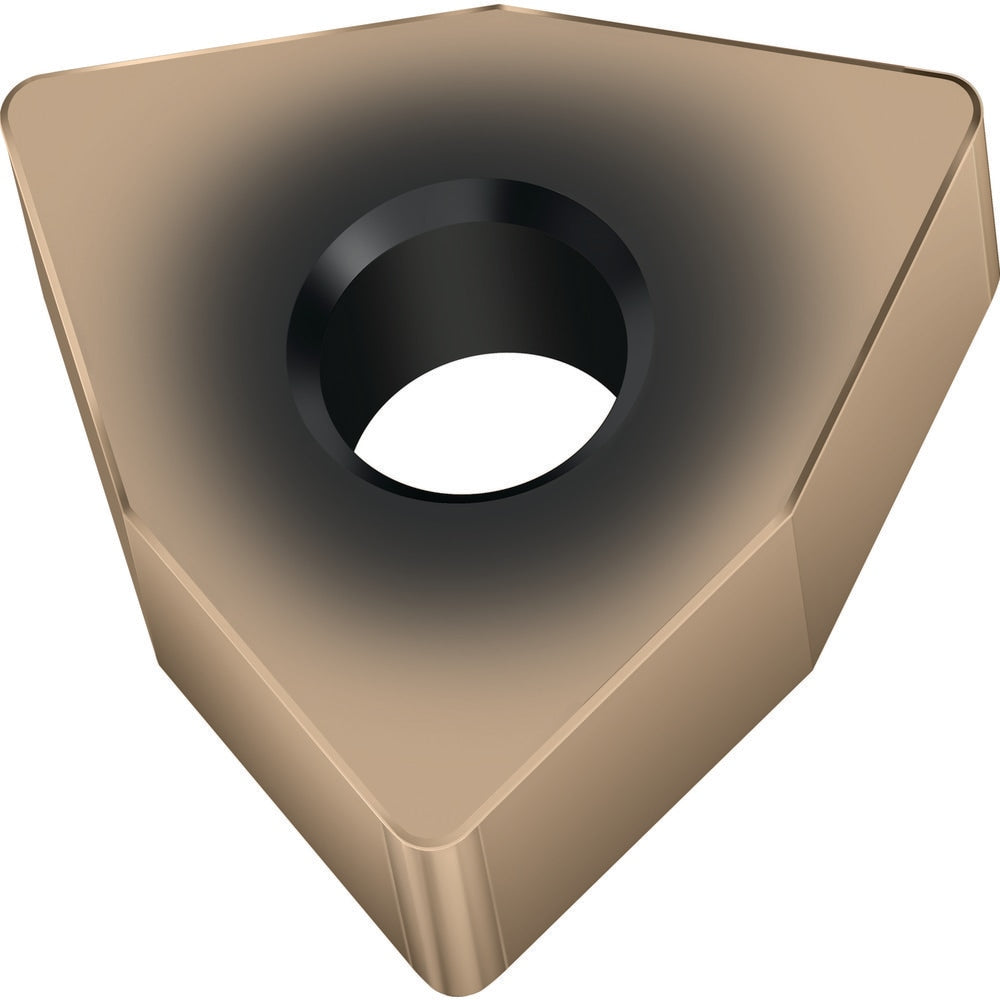

Turning Insert: WNGA431SMMWS WCH10C, Carbide
Item #: 99202905
Brand: Walter
Model #: 8064426
Product Specifications
| ANSI Insert Code | WNGA431 |
| ISO Insert Code | WNGA080404 |
| Relief Angle | 0.000 |
| Insert Style | WNGA |
| Corner Radius (mm) | 0.40 |
| Included Angle | 80.00 |
| Manufacturer Grade | WCH10C |
| Coating/Finish | TiN |
| Wiper Edge | Yes |
| Insert Hand | Neutral |
| Insert Thickness | 4.76 |
| Series | WNGA |
| Inscribed Circle (mm) | 12.70 |
| Insert Material | Carbide |
| Insert Shape | Trigon 80° |
| Chip Breaker Operation | Wiper - Finishing |
| Grade Characteristics | Hardened Materials (H) - High Wear-Resistance |
| Side Clearance | Negative |
| Number Of Cutting Edges | 6 |
| Insert Shape Code | W |
| Hole Diameter (Mm) ( - 0 Decimals) | 5.1600 |
| Maximum Depth of Cut (mm) | 0.50 |
| Insert Holding Method | Screw |
| Clearance Code | N |
| Tolerance Code | G |
| Insert Length (mm) | 8.69 |
| Manufacturers Catalog Number | WNGA080404SM-MWS WCH10C |
| Chip Breaker | SM-MWS |
| Width (mm - 2 Decimals) | 12.70 |
| ANSI Size Code | 431 |
| ISO Size Code | 080404 |
| UNSPSC Code | 23242105 |
| Insert Size Code | 08 |
| Country of Origin | Japan |
